    Preinstalled Compact Substation ZGS13-630/12 For Industrial Zone / Commercial Center

    Ask Lasest Price
    Brand Name : HENGFENGYOU
    Model Number : ZGS
    Certification : ISO IEC CB COC KEMA SNI SABS CCC
    Price : 2000-200000/piece
    Payment Terms : LC T/T
    Supply Ability : 5000 pieces/year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

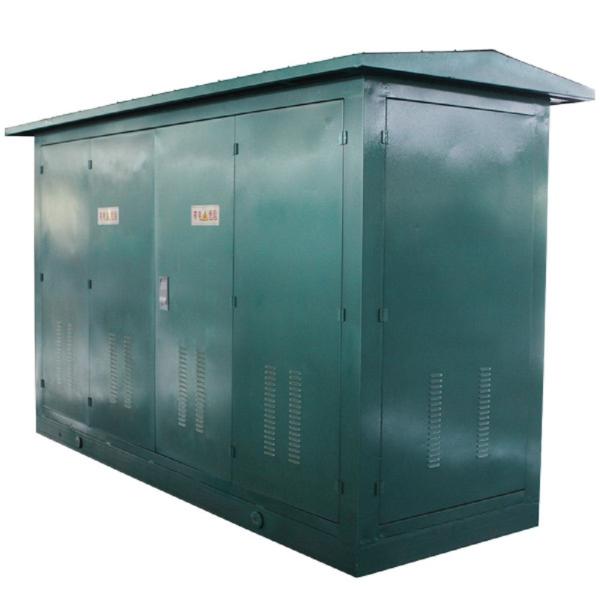

    Preinstalled Compact Substation ZGS13-630/12 For Industrial Zone / Commercial Center

    ZGS13-630/12 Preinstalled Substation (American) Compact Substation

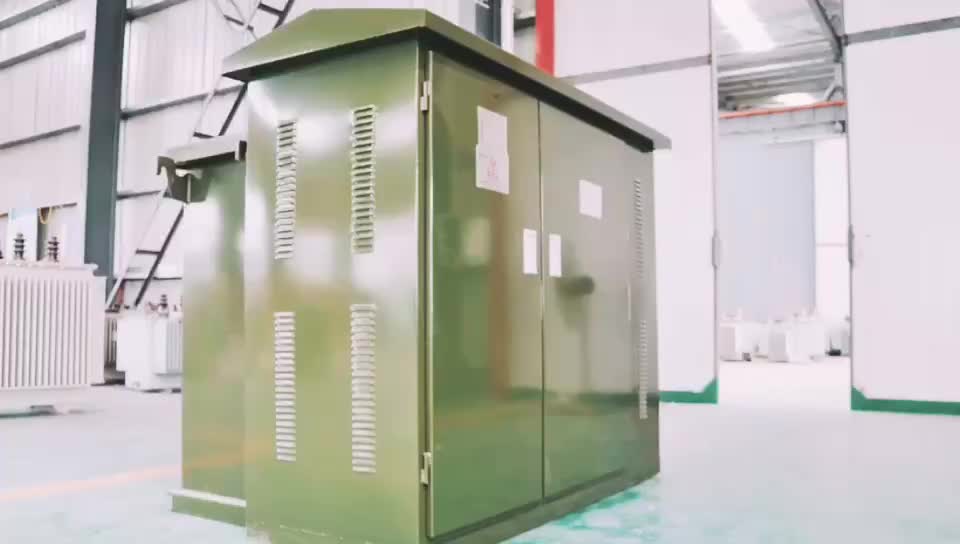

    Product View

    ZGS series combined transformers also called American transformers and are series of products as required
    by the construction development and transformation of rural and urban grid.It is a kind of transformer combined
    by auxiliary equipment including the body of transformer,switchgear, fuse, disassembling switches, low-voltage
    power distribution unit, which can meetthe requirement of configurations such as electric power measurement,
    reactive compensation and low-voltage shunt. The ZGS combined transformer, in AC 50HZ, 6-10KV network,
    whose nominal capacity is 63-1600KVA, is an independent set of transformation and distribution device, which
    can be both applied to outdoor and indoor, generally used in industrial zone,urban residential district, commercial
    center, high-rise buildings and temporary construction
    Technical parameters
    Rated voltage10/0.4kv(HV/LV)
    Maximum working voltage12(HV)
    Rated frequency50Hz
    Rated capacity50-1600kVA
    Withstand voltage(1 min working)35kV
    Lightning impulse voltage75kV
    Cooling methodoil immersion self-cooling
    High voltage50kA
    backup fuse switching on current
    on-off current of the plug fuse2.5
    environment temperature-35℃ to 40℃
    Coil temperature62 ℃
    No load voltage±5% ±2x2.5%
    Noise level50db
    Protection levelIP43
