Outdoor Oil Immersed Transformer 6.3kv Output Voltage 50 / 60Hz Frequency

Ask Lasest Price
Brand Name :	HENGFENGYOU
Model Number :	s13 type
Certification :	ISO IEC CB COC KEMA SNI SABS CCC
Payment Terms :	LC T/T
Supply Ability :	5000 pieces/year
Delivery Time :	15 DAYS
Price :	500-30000

Add to Cart

Product Details
Company Profile

Outdoor Oil Immersed Transformer 6.3kv Output Voltage 50 / 60Hz Frequency

S13series oil-immersed power transformer

Type	Rated capacit (KVA)	Connection ygroup grade	Voltagecombination(KV)			No-loadloss	loadloss(W)		No-load uren(%)r	Short-druit sistance(%)
Type	Rated capacit (KVA)	Connection ygroup grade	Highvoltage	Tappingrange	Lowoltage	(W)	Dy	Yy	No-load uren(%)r	Short-druit sistance(%)
S13-M.RL-30	30	YynO or Dyn11	6 6.3 6	土5% or 土2x2.5%	0.4	80	630	600	2.3	4.0
S13-M.RL-50	50					100	910	870	2.0
S13-M.RL-80	80					130	1310	1250	1.9
S13-M.RL-100	100					150	1580	1500	1.8
S13-M.RL-125	125					170	1890	1800	1.7
S13-M.RL-160	160					200	2310	2200	1.6
S13-M.RL-200	200					240	2730	2600	1.5
S13-M.RL250	250					290	3200	3050	1.4
S13-M.RL-315	315					340	3830	3650	1.4
S13-M.RL-400	400					410	4520	4300	1.3
S13-M.RL-500	500					480	5410	5150	1.2
S13-M.RL-630	630					570	6200	6200	1.1	4.5
S13-M.RL-800	800					700	7500	7500
S13-M.RL-1000	1000					830	10300	10300
S13-M.RL-1250	1250					830	10300	10300
S13-M.RL-1250	1250					970	12000	12000	0.9
S13-M.RL-1600	1600

Product features

1.Low loss: cornermagnetic circuit and pacting fling cofite is high, iron coresli stel magnetic dretion

are same, wnang com able, and running is economic.aoluand 1e 28%, No boad curen odhce 50%

eo Enaa cue iaeatewith tradtiona stacked iron core ol-imtransformers, the no-load loss rate can be
2.Low noise: three dimensional rol iron coro o-imimersed rafomer noiso is 5- 10dB lowerthan stacked

iron core olimersed ransfomer is an ideal mute product.
High mechanical strength: three-dimensional roll iron core adopts circle iron section whichhas better

anti short circuit capacity than long circie section. And has higher pad covering rateand good fixing

effect. has improved product anti-short circuit capability.
S13 type 10KV duplex winding series main product property parameters

Outdoor Oil Immersed Transformer 6.3kv Output Voltage 50 / 60Hz Frequency

Technical requirements

1.Hengfengyou continues to increase investment of technical strength and modernequipment,

optimizes the production process and process constantly, has estab-lished strict and perfect

quality management standard, conducts strict moni-toring for each process from raw material

receiving inspection, production, fin-ished product inspection and warehousing, finished

products delivery toinstallation, never allows unqualified products to flow out, takes the idea

of"Zero Defect" into each detail bit by bit, ensures each process be able opass all standards,

and manufactures perfect products carefully.

2.It is our excellent internal control standard and product quality assurancesystem that makes

Hengfengyou transformer achieve favor from more andmore customers, and obtain affimation

from domestic and foreign customers

Outdoor Oil Immersed Transformer 6.3kv Output Voltage 50 / 60Hz Frequency

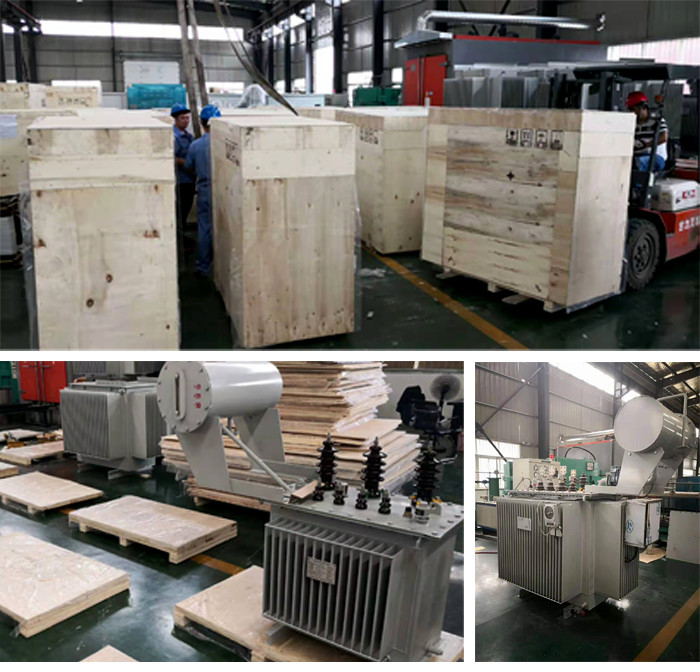

Product transportation

1.Sea Transportation

2.land transportation

3.railway transportation

4.Air Transportation

Outdoor Oil Immersed Transformer 6.3kv Output Voltage 50 / 60Hz Frequency

Company Fair

♦ Introduction to the exhibition

^{_{The china-asean Expo (hereinafter referred to as the East Expo) is
an international economic and}}

^{_{trade event co-hosted by the economic and trade departments of the
governments of China and the}}

^{_{10 ASEAN countries and the ASEAN Secretariat, and hosted by Guangxi
It has promoted and}}

^{_{witnessed the enrichment of the connotation of the strategic
partnership between China and ASEAN,}}

^{_{the rapid improvement of the level of economic and trade
cooperation, and the increasingly close}}

^{_{human and people-to-people exchanges, and played an important role
in serving the construction of}}

^{_{Belt and Road. In April 2017, during his visit to Guangxi, General
Secretary Xi Jinping spoke highly of}}

^{_{the fair, which has become a bright business card for Guangxi and
an important open platform for}}

^{_{China's Foshan and ASEAN. In February 2014, China designated the
East Fair as a foreign-related}}

^{_{forum and exhibition with Special International Influence, one of
the three national exhibitions.}}

♦Content of the exhibition

The Fourth China International Power Quality Summit Forum and Product Exhibition, Hengfengyou,

adhering to the company's consistent green concept, set up a booth with a strong cultural and ecological

atmosphere, breath. Active filter products of 35A and 100A were exhibited at the meeting. In addition to

ensuring the excellent quality of products, Sheng Hong has never stopped to product improvement, based

on many years of experience in the use of the industry to continuously optimize the product software and

hardware, in order to bring the best user experience.

Outdoor Oil Immersed Transformer 6.3kv Output Voltage 50 / 60Hz Frequency
