Indoor Withdrawable Low Tension Switchgear , GCK Electrical LV Panel

    Buy cheap Indoor Withdrawable Low Tension Switchgear , GCK Electrical LV Panel from wholesalers

    Buy cheap Indoor Withdrawable Low Tension Switchgear , GCK Electrical LV Panel from wholesalers
    • Buy cheap Indoor Withdrawable Low Tension Switchgear , GCK Electrical LV Panel from wholesalers

    Indoor Withdrawable Low Tension Switchgear , GCK Electrical LV Panel

    Ask Lasest Price
    Brand Name : HENGFENGYOU
    Model Number : GCK
    Certification : ISO IEC CB COC KEMA SNI SABS CCC
    Price : 200-20000/piece
    Payment Terms : LC T/T
    Supply Ability : 5000 piece/year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Indoor Withdrawable Low Tension Switchgear , GCK Electrical LV Panel

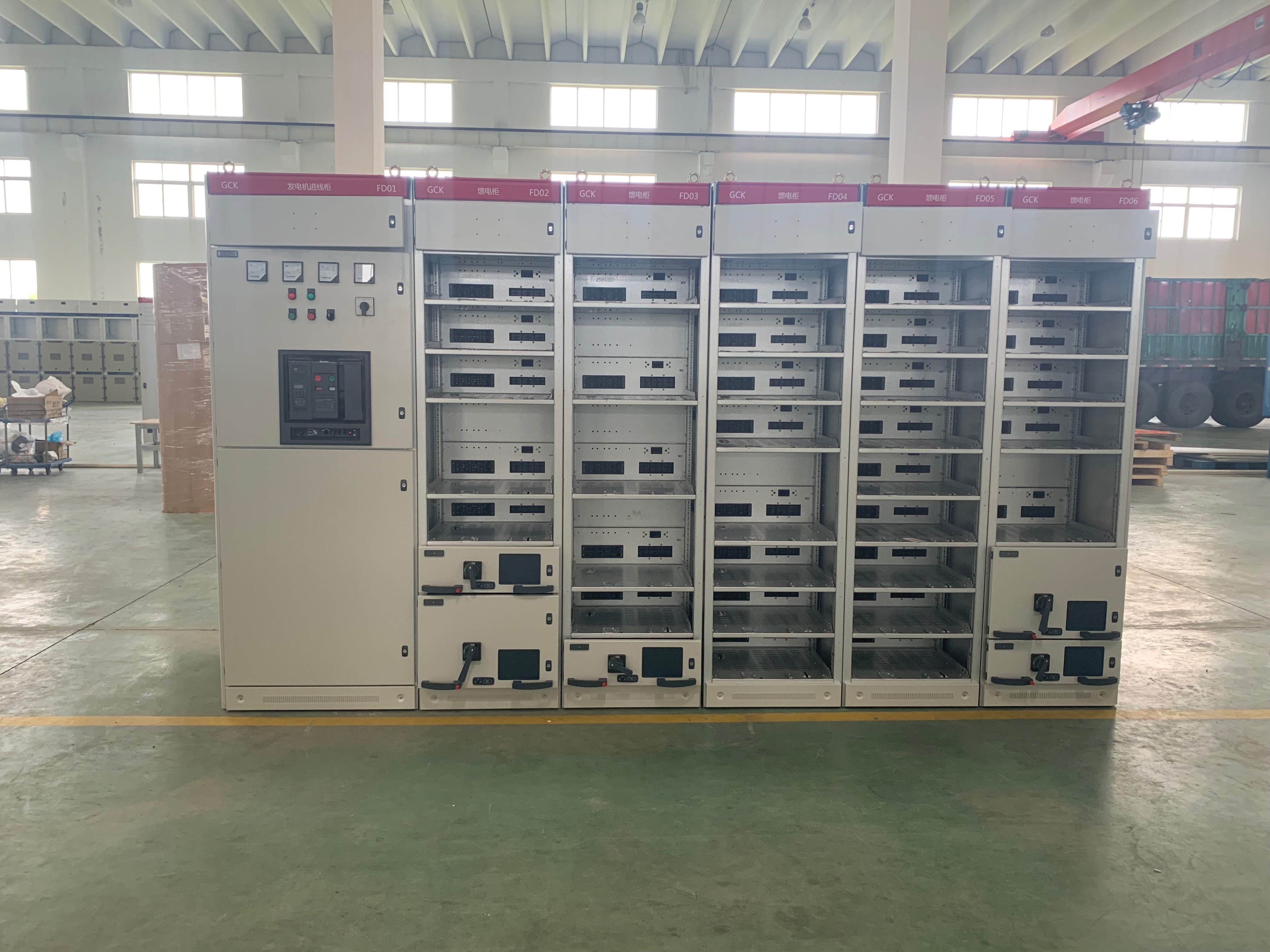

    GCK Indoor Low Voltage Withdrawable Switchgear


    Rated Insulated VoltageAC660V , AV1000V
    Rated Working VoltageAC380V , AC660V
    Rated Frequency50Hz
    Horizontal busbar rated current1250-4000A
    Vertical busbar rated current1000A
    Feeder circuit maximum current2500A
    Drawer circuit Maximum current630A
    Control motor maximum capacity320KW

    Horizontal busbar peak

    withstand current(0.1 S)


    63KA,105KA,176KA

    Horizontal busbar peak

    withstand current(1 S)


    30KA,50KA,80KA,100KA

    Vertical busbar peak

    withstand current(0.1 S)


    63KA,105KA

    Vertical busbar peak

    withstand current(1 S)


    30KA,50KA

    Rated working frequency withstand voltage(1 min)2500A

    Secondary frequency

    withstand voltage(1 min)


    2500A

    Dimension size

    ( width*deep*height) mm


    600(800/1000)*800(1000)*2200


    FAQ

    Q: Dose your company is the manufacturer or trader?
    R: We are a professional and leading manufacturer located in Bengbu city,Anhui province ,China.
    Q: What is your after-sales service and delivery?
    R: We can reply the customer's question and resolve it within 24 hours everyday and give full technical support in time about our products.The delivery is base on the order quantity, generally we need 30-40days can finish it ,every month can produce 30 CTNs .
    Q: What is the quality warranty about your product ?
    R: About the quality warranty , we have the quality certificates like CCC, ISO9001..etc for our H.V & L.V switchgears & electrical distribution equipment, We have CE,Rohs,CB,TUV,Kema..for their electrical parts and accessories. Meanwhile,we also can supply 3 years quality guarantee,during it we can supply free repair,maintenance and technical support. Generally for the switchgear and electrical distribution equipment can use over 30 years.
    Q: What is your main market?
    R: The main market for us is in mainland of China,meanwhile we have less than a half in South America,South-East Asia, Middle East,West-Africa, East-European countries and so on.
    Q: Does your company can accept ODM and OEM?
    R: Yes. Our R & D team owns latest technology ,can develop and produce products base on the customers' drawing with their own brand.
    Q: What is your payment terms?
    R:
    1-Irrevocable L/C at sight for order which amount is more than 1 million US dollars
    2- 30% T/T in advance as deposit ,balanced against the shipping documents
