Supply ZW8-12 / 630-20 high voltage vacuum circuit breaker, ZW8
outdoor vacuum switch

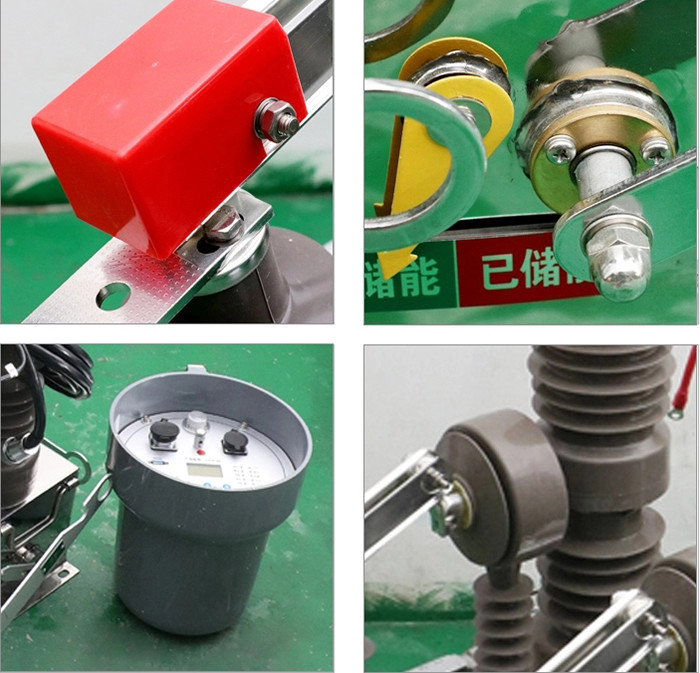

ZW8 series switch features
1. according to user needs can be installed 50 / 5,100 / 5,200 /
5,400 / 5,630 / 5 current
transformer external insulation using high-voltage silicone rubber
sleeve for composite
insulation! .
2. built-in multi-tap current transformer can be used as
over-current protection . !
3.The double-winding current transformer can be used for protection
and measurement.
If the voltage transformer, auto-reclosing controller and
auto-sectioning controller are installed,
the distribution protection automation and the functions of remote
measurement, remote signal,
remote control and remote adjustment of "four remote" can be
realized . . !
4.can be installed isolation switch . !
| 额定电压Ratedvolage | 12kV |
| 额定电流Ratedcurrent | 630A |
| 工频耐压Powerfrequencywithstandvoltiage | 42kV/48kV |
| 雷电冲击耐压(峰值)LUghtningmpulsewithstandvllago(pcak) | 75kV/85kV |
| 额定短路开断电流(有效值)Ratedsthortcircutbreakingcurrent | 20kA |
| 额定短路关合电流(峰值)Ratedshortcircuiltmakingcurrent(peakvalue) | 50kA |
| 额定操作顺序Ratedsequencefoperations | 分-0.3S合分-180S合分0-0.3s-C0-180s-CO |
| 额定短路电流开断次数Ratedshort-circutcurrentbreakingtimes | 30次 |
| 机械寿命Mechanicallte | 10000次 |
| 额定操作电压(合/分闸线圈)Ratedoperatingvlage(close/brakecoil) | DC220VAC220V |
| 动,静触头允许磨损厚度Wearthicknessbetveenaynamicandstaticcontactor | 3mm |
| 隔离断口断开距离Isodlatingtracturebreakdistance | >200mm |

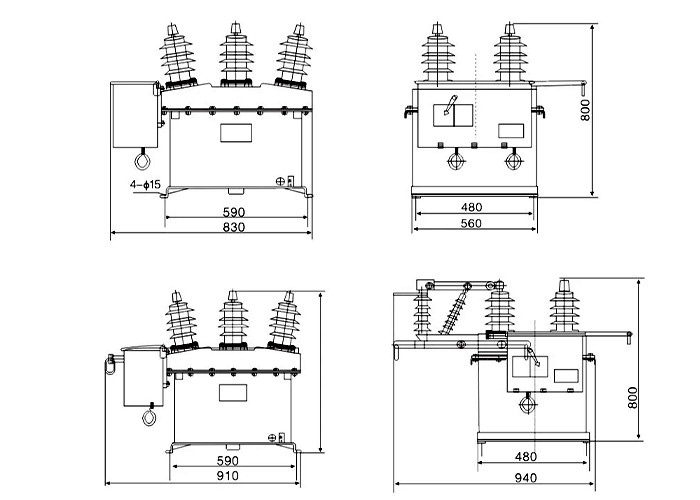

Specification:
Snapped vacuum interrupter,air insulated,with electric spring
operating mechanism,allowing
breaking the ability strong,high frequency short-circuit
breaking,no fire and explosion hazards,
easy operation is an excellent,practical,strong product.
The product structure using three-phase common tank type,casing
into the outlet,cabinets dry
air,electric spring mechanism is disposed on the side of the
box,can be used under relatively
harsh environmental conditions.
This product is vacuum interrupter ceramic shell,goblet
longitudinal magnetic field electrode
structure,copper-chromium contact materials,with excellent breaking
and closing short-circuit
current capability.
The product is small,light weight,becautiful apperance.vacuum
interrupter ans insulation support
sleeve design compact,pole qualifying conductive silicone rubber
outer note,can adapt to harsh
weather confitions and dirty environmrnts.
