HengFengYou High quality and safety vcb ZW7-40.5 outdoor high
voltage
vacuum circuit breaker
The ZW7-40.5 outdoor HV vacuum breaker is a kind of outdoor HV
switching devices used
in three-phase AC 50Hz. 40.5kV. It uses spring operating mechanism
or electromagnetic
operating mechanism; it can be controlled to switch-on/off
remotely; it can also be used to
control energy storage and switch -on/off manually. The breaker
conforms to standards of GB
1984-89AC HV breaker and IEC56AC HV breaker. It is used for
protecting and controlling
distribution systems in transformer substations, operating in gear
and protecting the circuit in
country electric nets, industrial and mining enterprises when
short-circuit occurs. The breaker
has porcelain post structure. The upper knob insulator has vacancy
arc-extinguishing chamber
while the nether one is post knob insulator. The breaker is
suitable for the place where-frequent
operation is allowed. The breaker has the performance of reliable
seal, aging resistance, and
flame resistance, explosion resistance, long mechanical life,
simple installation and convenient
debugging.
Service conditions:
1. Ambient temperature: not higher than +40 °C, not less than -35°C
2. Altitude: not exceed 1000m.
3. Relative humidity: daily average of not more than 95%, month
average of not more than 90%.
4. Earthquake intensity: not more than ten.
5. No fire, explosion hazard, serious filthy, chemical corrosion,
as well as places of intense vibration.
| No. | Specifications | Unit | Value |
| 1 | RatedVoltage | kV | 40.5 |
| 2 | Ratedcurrent | A | 1600 |
| 3 | Ratedshort-circuitbreakingcurrent | kA | 31.5 |
| 4 | Ratedshortcircuitswitchingcurrent(peak) | 80 |
| 5 | Ratedshorttimewithstand(thermalstability)current | 31.5. |
| 6 | Ratedshorttimewithstand(dynamicstabilit)current | 80 |
| 7 | Ratedshort-circuitdurationtime | S | 4 |
| 8 | Ratedinsulating
level | Powerfrequency
withstandvoltage(1min) | Dry-type | kV | 95 |
| Wet-type | 80 |
Lightningimpulsewithstandvoltage
(peak) | kV | 185 |
| 9 | Ratedoperatingsequence | | 0-0.3S-CO-180s-CO |
| 10 | Breakingtimeofratedshort-circuitbreakingcurrent | Times | 20 |
| 11 | Breakingtime(withspringoperatingmechanism) | ms | ≤80 |
| 12 | Mechanicallife | times | 10000 |
| 13 | Ratedoperatingvoltage | V | AC220DC220 |
| 14 | Clearancebetweencontacts | mm | 20*30 |
| 15 | Overstrokeofcontacts | mm | 5+1 |
| 16 | Bouncetime | ms | ≤5 |
| 17 | LoopDCresistanceofeachphase | μQ | 120 |

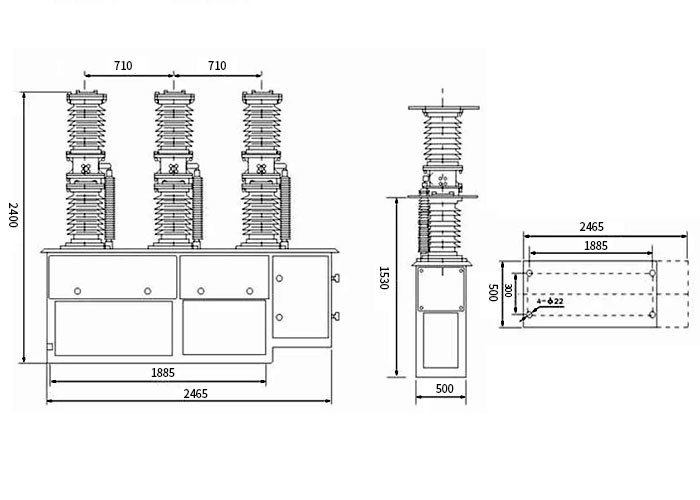

| 18 | Outinedimensionofbreaker(L*W*H) | mm | 2200*700*2500 |
| 19 | Totalweightofbreaker(withoperatingmechanism) | kg | 1100 |
Specification:
Snapped vacuum interrupter,air insulated,with electric spring
operating mechanism,allowing
breaking the ability strong,high frequency short-circuit
breaking,no fire and explosion hazards,
easy operation is an excellent,practical,strong product.
The product structure using three-phase common tank type,casing
into the outlet,cabinets dry
air,electric spring mechanism is disposed on the side of the
box,can be used under relatively
harsh environmental conditions.
This product is vacuum interrupter ceramic shell,goblet
longitudinal magnetic field electrode
structure,copper-chromium contact materials,with excellent breaking
and closing short-circuit
current capability.
The product is small,light weight,becautiful apperance.vacuum
interrupter ans insulation support
sleeve design compact,pole qualifying conductive silicone rubber
outer note,can adapt to harsh
weather confitions and dirty environmrnts.
