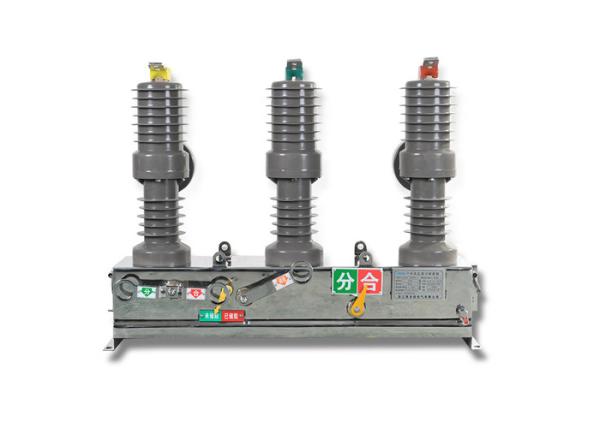

High quality safety vcb ZW32-12D/630-20 series pillar type outdoor
high-voltage
12kv vacuum circuit breaker
ZW32-12 series pillar type outdoor vacuum high-voltage circuit
breaker is a kind of outdoor
high-voltage switch equipment of three phase frequency 50HZ,rated
voltage 12kv.It is used
in opening and closing the load current, overload current and short
circuit current of the power
distribution network of the whole city or the village.
Service conditions:
a. ambient air temperature , upper limit +40, lower limit-40
b. elevation,≤1000mIf there is any need to increase the elevation,,
the rated insulation level
should be increased properly
c. wind pressure, less than 700pa(the same as 34m/s wind speed)
d. Amplitude, The earthquake intensity does not exceed 8 degrees
e. pollution level, level 3
f. daily range of temperature ,less than 25
| Item | Unit | Parameter |
| 12.5KA | 16KA | 20KA |
| Ratedvoltage | KV | 12 |
| Ratedcurrent | A | 400 | 630 | 630 |
| Ratedshortopencurrent | KA | 12.5 | 16 | 20 |
| Ratedshortmakingcurrent(peak) | 31.5 | 40 | 50 |
| Ratedpeakwithstandcurrent | 31.5 | 40 | 50 |
| Ratedshortwithstandcurrent | 12.5 | 16 | 20 |
| Ratedshortduration | S | 4 |
| Ratedisolationlevel | thunderimpulsewithstandvoltage
(peak) | KV | Altermatedtoearth75fracture85 |
| 1minpowerfrequencywithstandvoltage | Alternatedtoearth42fracture85 |
| Ratedoperatingsequence | | dlose-0.3s-openanddlose-180s-openandclose
electromotionagency |
Operationsofshort-circuitmakingcurrentbreakingcurrent
interruption | | |
| Mechanicallife | 10000 |
| Ratedoperatingvoltage(openanddosecoil) | v | DC220110AC220110 |
| Contacterosionpermissionlength | mm | 3 |
| Ratedcurrentofover-currenttrip | A | 5 |
| Currentratioofmutualinductor | | 200/5400/5600/5 |
| Ratedcontactstroke | mm | 9+1 |
| 02:00.0 |
| Averageopeningspeed | m/s | 1.2+0.3 |
| Averageclosingspeed | 0.60.2 |

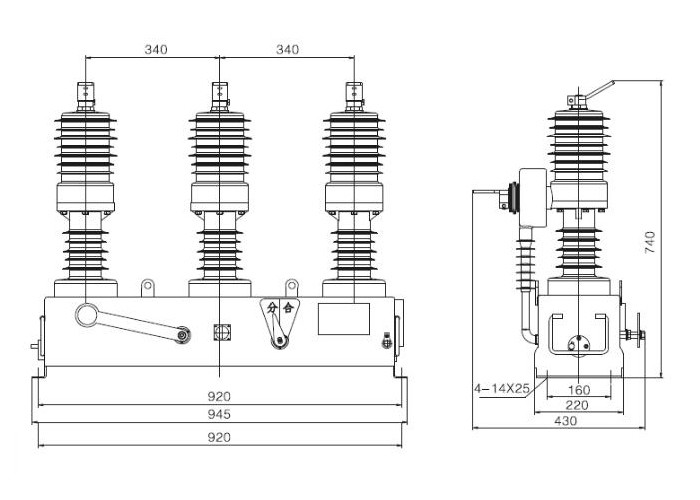

Specification:
Snapped vacuum interrupter,air insulated,with electric spring
operating mechanism,allowing
breaking the ability strong,high frequency short-circuit
breaking,no fire and explosion hazards,
easy operation is an excellent,practical,strong product.
The product structure using three-phase common tank type,casing
into the outlet,cabinets dry
air,electric spring mechanism is disposed on the side of the
box,can be used under relatively
harsh environmental conditions.
This product is vacuum interrupter ceramic shell,goblet
longitudinal magnetic field electrode
structure,copper-chromium contact materials,with excellent breaking
and closing short-circuit
current capability.
The product is small,light weight,becautiful apperance.vacuum
interrupter ans insulation support
sleeve design compact,pole qualifying conductive silicone rubber
outer note,can adapt to harsh
weather confitions and dirty environmrnts.
