High quality safety vcb ZW32-12D/630-20 series pillar type outdoor
high-voltage
12kv vacuum circuit breaker
ZW32-12 series outdoor pole-mounted vacuum circuit breaker is a
kind of outdoor three-phase
AC power distribution equipment at 12kV and 50Hz, mainly used for
closing the load current
and opening overcurrent and short circuit current in the power
system. It can be used as a section
switch in the distribution line, branch line and ring main and as a
incoming switch in rural grid,
industrial and mining enterprises, residential areas, construction
sites, etc.
Service conditions:
Altitude: ≤1000m; if applied in special conditions, it is designed
to 2000m to 4000m to meet
the requirements of different altitudes.
Ambient temperature: -40℃~+40℃;
Wind speed≤35m/s;
It is placed in the places without violent vibration
| No. | Description | Unit | Data |
| 1 | Ratedvoltage | kV | 12 |
| 2 | Ratedfrequency | Hz | 50 |
| 3 | Ratedcurrent | | 630 | 1250 |
| 4 | Ratedshortcircuitbreakingcurrent | kA | 20 | 25 |
| 5 | Ratedpeakwithstandcurrent | kA | 50 | 63 |
| 6 | Ratedshorttimewithstandcurrent(4s) | kA | 20 | 25 |
| Ratedshortcircuitmakingcurrent(peak) | kA | 50 | 63 |
| 8 | Mechanicalendurance | times | 10000 |
| 9 | Ratedshortcircuitbreakingcurrentcapacity | times | 30 |
| 10 | Powerfrequencywithstandvoltage(1min)
Phasetophase/earth,betweenopencontacts | kV | 42 |
| 11 | Lightningimpulsewithstandvoltage(peak) | kV | 75 |
| 12 | Powerfrequencywithstandvoltageonsecondarycircuit(1
min) | V | 2000 |

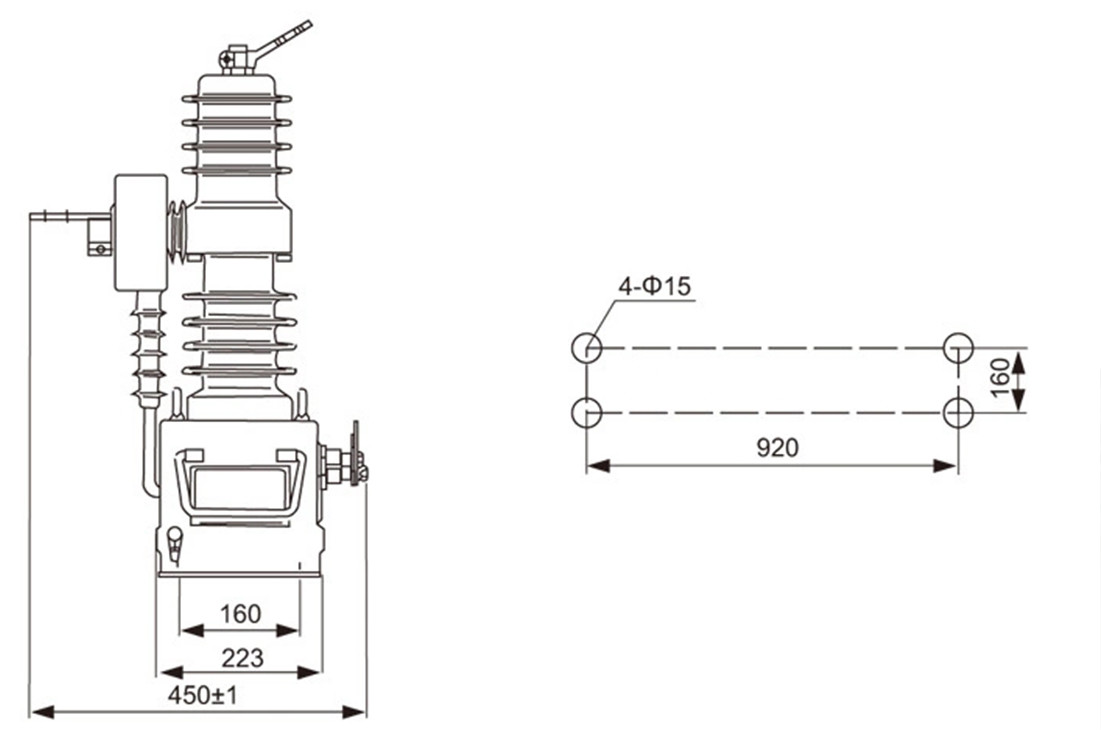

Product characteristics
1. The performance of the product is stable and reliable as the
product adopts three-pillar type
structure, and the vacuum arc-extinguishing chamber connects with
the operating mechanism
through insulation pulling rod;
2. Arc-extinguishing chamber, main conducting loop and insulation
support are casted into an
organic whole by epoxy resin with APG technology, and encapsulated
with silicon rubber, it is
provided with good anti-condensation performance and mechanical
strength.
3. The switch adopts a high performance spring operating mechanism
with the advantages of
simple structure and long mechanical life, and with the functions
of manual/electric energy storage
and opening/closing operation.
4. An integrated isolating switch is optional for the product.
5. The product has the advantages of small size, novel appearance,
light weight and easy installation.
6. The switch can be equipped with control terminal interface to
apply to automation distributiong
networks and the unattended substations.
