Direct sale HGN15-12 indoor high voltage switchgear cabinet / high
voltage metering cabinet
Product overview

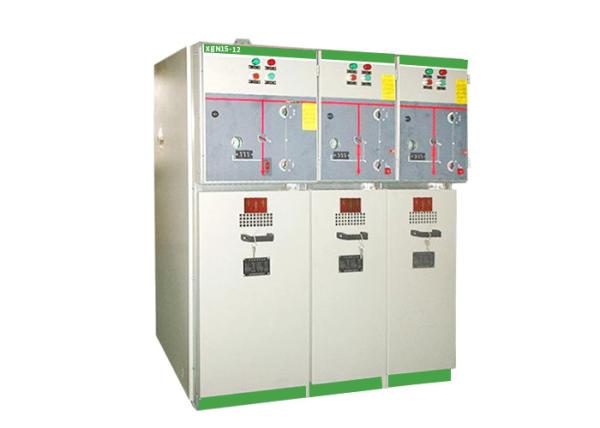

Model XGN15-12 High Voltage Ring Network cabinet is a new type of
unit, Modular
Sulfur Hexafluoride Ring Network cabinet, which uses Sulfur
hexafluoride switch as
the main switch while the whole cabinet uses air insulation, the
utility model has the
advantages of simple structure, flexible operation, reliable
interlock and convenient
installation, and can provide a satisfactory technical scheme for
various application
occasions and different user requirements
| No. | lItems | Unit | Parameters |
| XGN15-12(F) | XGN15-12(F.R) |
| Ratedvoltage | KV | 12 | 12 |
| 2 | Ratedfrequency | Hz | 50 | 50 |
| 3 | Themainbusbarratedcurrent | A | 630 | 630 |
| 4 | Maximumratedcurrentoffuse | A | | 125 |
| 5 | Ratedshortdurationwithstand
current/Ratedshortcircuitduration
ofmaincircuit | KAVs | 3月20日 | 3月20日 |
| Ratedexpectedshortcircuit
breakingcurrent | KA | | 2月19日 |
| 1月7日 | 1minpowerfrequencywithstand
voltage,phase-phase,phase-
groundIfracture | KV | 42/48 | 42/48 |
| Lightningimpulsewithstand
voltage,phase-phase,phase-
groundIfracture | | 75/85 | 75/85 |
| 1月9日 | Protectiongrade | | IP2X | IP2X |
Product characteristics
Internal components are FLN36-12D type SF6 load switch with
insulated shell or
FLRN36-12D type load switch-fuse combination. Equipped with vacuum
load switch and
spring operating mechanism which can be operated by hand or
electric. Earthing switch
and insulating switch are equipped with hand operating mechanism.
With small volume and
high security. It meets requirements of Standards
GB3906,GB/T11022,IEC60298,DL404 etc.
Environmental Conditions
1) Suitable Temperature: -15℃ ~ +40℃
2) Suitable Altitude: ≤1000m
3) Relative Humidity: Daily mean ≤95%, monthly mean ≤90%
4) Gradation of Earthquake Damage: ≤ Level 8
5) Applicable occasions should be free from corrosives,
inflammables and vapor.
