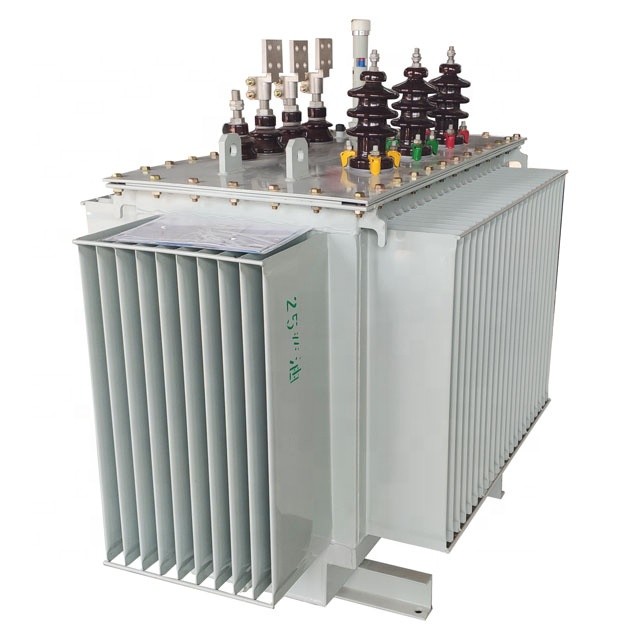

low loss 11kv Distribution Transformer Best price Electric Transformers

    Buy cheap low loss 11kv Distribution Transformer Best price Electric Transformers from wholesalers

    Buy cheap low loss 11kv Distribution Transformer Best price Electric Transformers from wholesalers
    • Buy cheap low loss 11kv Distribution Transformer Best price Electric Transformers from wholesalers
    • Buy cheap low loss 11kv Distribution Transformer Best price Electric Transformers from wholesalers
    • Buy cheap low loss 11kv Distribution Transformer Best price Electric Transformers from wholesalers

    low loss 11kv Distribution Transformer Best price Electric Transformers

    Ask Lasest Price
    Brand Name : HENGFENGYOU
    Model Number : s11 13 15
    Certification : ISO IEC CB COC KEMA SNI SABS CCC
    Price : 200-200000/piece
    Payment Terms : LC T/T
    Supply Ability : 5000 pieces/year
    Delivery Time : 15 DAYS
    • Product Details
    • Company Profile

    low loss 11kv Distribution Transformer Best price Electric Transformers

    11kv Distribution Transformer, Electric Transformer Capacity 30kVA to 50mva

    low loss 11kv Distribution Transformer Best price Electric Transformers

    Transformer can transformer the voltage of a network into the voltage matching the system or load and fulfill power transferring and distributing.Taking the place of transformers with silicon steel core, AMDT can be widely applied in outdoor power distribution networks systems, which is magnificently energy saving and can lessen air pollution. It is especially applicable for areas with insufficient power supply and fluctuating load and where daily maintenance is hard. Since the transformer adopts a fully sealed structure, the insulating oil and the insulating medium are not polluted by the atmosphere, so it can be carried out in a humid environment, making the ideal power distribution equipment in the urban and rural distribution networks.


    Rated Capacity (KVA)Voltage combination

    Connection

    Symbol

    load loss (W)No-load loss(w) 75

    No-load

    Current %

    Shirt-circuit Impedance

    %

    HV (kv)LV (kv)
    30

    6

    6.3

    10

    10.5

    11


    0.4

    Yyn0

    Dyn11

    1006002.14
    501308702
    6315010401.9
    8018012501.8
    10020015001.6
    12524018001.5
    16027022001.4
    20033026001.3
    25040030501.2
    31548036501.1
    40057043001
    50068051001
    63081062000.94.5
    80098075000.8
    10001150103000.7
    12501360120000.6
    16001640145000.6
    20001960180000.5
    Note: we can design and manufacture special transformer as customers' requirements.

    Features.

    1. The iron core is processed by advanced longitudinal and transverse shearing and stacking equipment, and the stepped three-level joint disperses the air gap distribution, improves the magnetic flux direction, and reduces the no-load loss, no-load current and noise.
    2. The iron core adopts the pull plate, the pressing ring, the special glue for the end face of the silicon steel and a series of integral structures and measures to improve the mechanical strength.
    3. New high and low voltage winding structure, reasonable layout of the tapping area and oil passage design, improve mechanical strength and short circuit resistance.
    4. The fuel tank is a hanging structure, and the box line is smooth, simple, generous and beautiful.

    low loss 11kv Distribution Transformer Best price Electric Transformers


    Our team

    1. Our electrical engineers have more than 10 years of working-experience.

    2. Our workshop workers are all skilled industrial workers who have been trained at least for 3 months.

    3. Our sales team, regularly trained by management consultants, is able to provide professional solutions for customers.

    4. Our technical team is ready for 24-hour technical support worldwide.

    5. Our customer service team ensures on time delivery.


    Our services:

    1. ISO accredited excellent manufacturer, SGS, CE, CB, CNAs, CQC, CCC certification, etc

    2. The whole process of production and transportation can be accessible to picture tracking.

    3 If quality problems after sales, it can be returned or re-delivered free of charge.

    4. We promise 2 years warranty.

    5. Global technical guidance for 24-hours * 365 days.
