    KYN28-12 Withdrawable Switchgear Air Insulated Switchgear For Power Distribution

    Ask Lasest Price
    Brand Name : HENGFENGYOU
    Model Number : KYN28A-12
    Certification : ISO IEC CB COC KEMA SNI SABS CCC
    Payment Terms : LC T/T
    Supply Ability : 5000 piece/year
    Delivery Time : 30 days
    Price : 200-20000/piece
    • Product Details
    • Company Profile

    KYN28-12 Withdrawable Switchgear Air Insulated Switchgear For Power Distribution


    KYN28-12 Metal-clad Withdrawable Enclosed switchgear power cubicles

    distribution switchboard air insulated type switchge

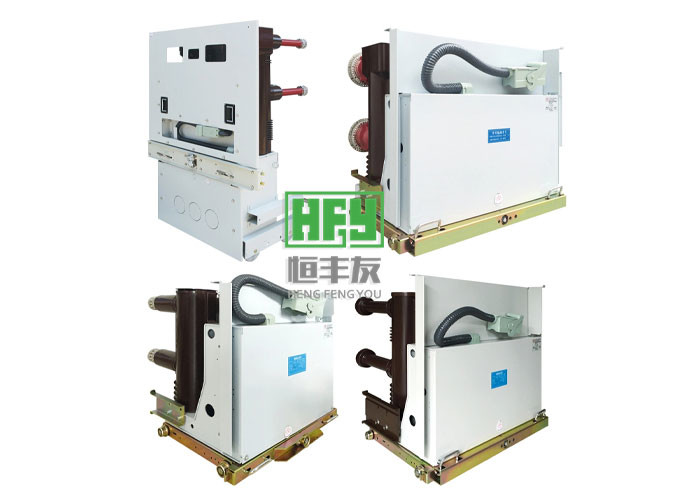

    KYN28 indoor metal-clad withdrawable switchgear(hereafter short as switchgear) is a complete power distribution device for 3.6~24KV, 3 phase AC 50Hz, single bus sectionalized system. It is main used for power transmission of middle/small generators in power plants, power receiving, transmission for substations in power distribution and power system of factories, mines and enterprises, and starting of large high-voltage motor, etc, so as to control, protect and monitor the system. The switchgear meets IEC298, GB3906-91. In addition to be used with domestic VS1 vacuum circuit breaker, it can be used with VD4 from ABB, 3AH5 from Siemens domestic ZN65A, and VB2 from GE, etc. It is truly a power distribution deviece with good performance.

    In order to meet the requirement for wall mounting and front-end maintenance, the switchgear is equipped with a special current transformer, so that the operator can maintain and inspect it in front of the cubicle.
    KYN28-12 Withdrawable Switchgear Air Insulated Switchgear For Power Distribution
    Service environment

    a. Ambient temperature: Maximum temperature:+40ºC Minimum temperature: -15ºC
    b. Ambient humidity: Daily average RH no more than 95%;Monthly average RH no more than 90%
    c. Altitude no higher than 2500m;
    d. The air around without any pollution of duty, smoke, ercode or flammable air, steam or salty fog;

    Main technical specifications

    No.ItemUnitParameters
    1Rated VoltageKV12
    2Rated FrequencyHz50/60
    3Rated CurrentA630 1250 1600 2000 2500 3150
    4Branch busbar rated currentA630 1250 1600 2000 2500 3150
    5Main busbar rated currentA630 1250 1600 2000 2500 3150
    61min power frequency withstand voltageDryKV3850/60
    4860/65
    Wet
    7Lightening impulse withstand voltageKV7595/125
    8Rated Short-time Withstand Current (4s)KA20/25/31.5/40
    9Rated Short Circuit Breaking Current(Peak)KA40/50/63/80/100
    10Protection typeIP4X for housing

    KYN28-12 Withdrawable Switchgear Air Insulated Switchgear For Power Distribution


    Company profile


    Qingdao Hengfengyou Electrical Engineering Co. , Ltd. is one of the large-scale electric

    complete sets of manufacturers in China, specializing in oil-immersed transformers, dry-type

    transformers, high-voltage Cabinets, low-voltage cabinets and substation manufacturing specialized

    electrical enterprises. The company is located in the beautiful coastal city of china-qingdao.

    The company has a registered capital of 10 million yuan, 20 senior technical personnel, more than

    500 employees, and a sound sales and service system, annual output value of US $1 billion, the

    products sell well at home and abroad.
