Distribution Toroidal Dry Type Transformer 11KV 500KVA Three Phase 50/60Hz

    Buy cheap Distribution Toroidal Dry Type Transformer 11KV 500KVA Three Phase 50/60Hz from wholesalers

    Buy cheap Distribution Toroidal Dry Type Transformer 11KV 500KVA Three Phase 50/60Hz from wholesalers
    • Buy cheap Distribution Toroidal Dry Type Transformer 11KV 500KVA Three Phase 50/60Hz from wholesalers

    Distribution Toroidal Dry Type Transformer 11KV 500KVA Three Phase 50/60Hz

    Ask Lasest Price
    Brand Name : HENGFENGYOU
    Model Number : SCB11
    Certification : ISO IEC CB COC KEMA SNI SABS CCC
    Payment Terms : LC T/T
    Supply Ability : 5000 pieces/year
    Delivery Time : 15 DAYS
    Price : 500-30000
    • Product Details
    • Company Profile

    Distribution Toroidal Dry Type Transformer 11KV 500KVA Three Phase 50/60Hz

    Dyn11 Yyn 06~10kv 30-2500kVA 3 Phase Dry Type Power Frequency Distribution Transformer


    SCB Dry Type power transformer

    The reel core fully sealed distribution transformer is a new generation of low noise and low loss transformer developed in recent years. Its iron core has no joint, greatly reduces the no-load loss and no-load current, reduces the no-load current by 60%~80%, the high and low coils are continuously coiled on the core column, the winding is tight, the concentricity is good, and the product is enhanced more. Anti-theft performance. The noise decreased by more than 10 decibels. The temperature rise is low 16-20K. Because of the continuous winding of iron core (cross section is pure circle), the orientation loss of silicon steel sheet is fully utilized, and the no-load loss is reduced by 20%~30%.

    The low voltage winding with capacity in the 630~2500kVA enclosure is made of cylinder or spiral structure with high mechanical strength and balanced ampere distribution. The product has good short circuit resistance.
    The positioning structure is added to the body so that it does not produce displacement during the transportation process, and all fasteners are equipped with fastener nuts to ensure that the fasteners are not loose during the long run of the product and meet the requirements of the non core lifting.
    The product surface is painted, primed and topcoat after degreasing, rust removing and phosphating. It can meet the special requirements of metallurgy, petrochemical system and wet dirty area.This series of products has beautiful appearance, small size, and can reduce the installation area. It is an ideal free maintenance quality product.

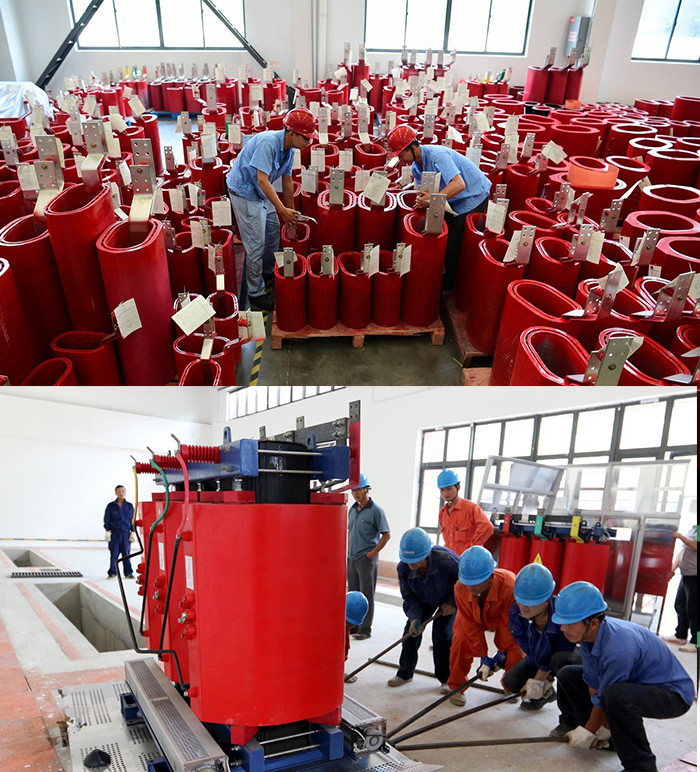

    Company profile

    Qingdao Hengfengyou Electrical Engineering Co. , Ltd. is one of the large-scale electric

    complete sets of manufacturers in China, specializing in oil-immersed transformers, dry-type

    transformers, high-voltage Cabinets, low-voltage cabinets and substation manufacturing

    specialized electrical enterprises. The company is located in the beautiful coastal city of

    china-qingdao. The company has a registered capital of 10 million yuan, 20 senior technical

    personnel, more than 500 employees, and a sound sales and service system, annual output

    value of US $1 billion, the products sell well at home and abroad. For a long time, the company

    has maintained close technical exchanges with universities, research institutes and power

    enterprises at home and abroad, and has first introduced the world's most advanced electrical

    technology such as Germany, the United States and France, self-designed and developed SCB

    series dry-type transformer and SC series oil-immersed transformer, with high operating efficiency,

    energy-saving obvious, the overall performance index reached the world advanced level.


    Distribution Toroidal Dry Type Transformer 11KV 500KVA Three Phase 50/60Hz


    Service Centre

    1. quick response in before sales period help you got order.
    2. excellent service in production time let you know each step we made.
    3. reliable quality solve you after sale headache.
    4. long period quality warranty ensure you can buy without hesitate.


    Quality Distribution Toroidal Dry Type Transformer 11KV 500KVA Three Phase 50/60Hz for sale
