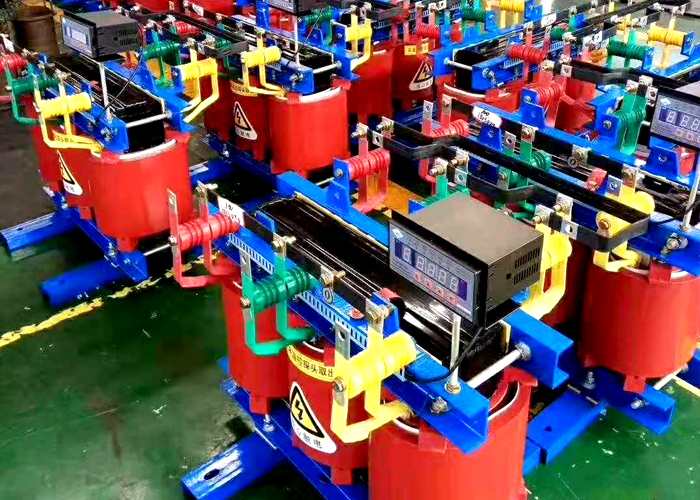

    Dry Type Cast Resin power Distribution Transformer 0.4kv Rated Capacity 30-3000kva 30kv 10kv 35kv

    Ask Lasest Price
    Brand Name : HENGFENGYOU
    Model Number : SCB12
    Price : 200-200000/piece
    Supply Ability : 5000 pieces/year
    Delivery Time : 15 DAYS
    Certification : ISO IEC CB COC KEMA SNI SABS CCC
    Payment Terms : LC T/T
    • Product Details
    • Company Profile

    Dry Type Cast Resin power Distribution Transformer 0.4kv Rated Capacity 30-3000kva 30kv 10kv 35kv

    Company introduction:

    Qingdao Hengfengyou -we can produce a variety of epoxy resin casting transformers with a voltage rating of 500kV or less and a capacity of 400MVA or less. The variety includes SC10, SCB11, SC12 and SC13 series. The product is widely used in power transmission and transformation systems, such as hotels, restaurants, airports, high-rise buildings, commercial centers, residential quarters and other important places, as well as subway, smelting power plants and other harsh environments.


    Product introduction:
    The product is made of superior material, scientific technique, advanced production testing equipment according to strict technique. It has characteristic of high reliability, long service life. According to different environment, they could equipped with different grade safe shed or non. The products which are new substitute for oil immersed power transformer, could be used in extensively high building, emporia, airdrome, tunnel, chemical plant, nuclear power plant, steam ect especial and important site.

    Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.

    ModelSCB10-500/10Capacity500 KVA
    Primary Voltage10KV , 11KVSecondary Voltage0.4 KV
    Rated current(H.V.)28.87ARated current (L.V.)721.7 A
    Vector GroupDYN11Insulation & Heatproof ClassF
    Max.temperature rising100KShort-circuit impedance4.10 %
    phase3Frequency50Hz
    Cooling MethodAN / AFNet Weight1810Kgs

    35KV dry type power transformer with off-load tap changer

    Rated capacity

    (KVA)

    Rated Voltage(KV)Coupling groupLoss(W)No-load current(%)Noise (B)
    HVTap changeLV

    Impedance

    voltage(%)


    N0-loadLoad
    800

    35 or

    38.5


    ±5% or

    ±2×2.5%

    3.15,6

    ,6.3,10

    10.5

    or 11

    Yyn0

    Dyn11

    6222081800.650
    10002640948052
    1250309011210
    16003640134400.553
    2000741801583054
    250048001897056
    315085960212800.4
    400069302557055
    500082703035058
    63009780354600.3
    800091120040000
    100001280048250
    1250015560560800.260
    16000191106598061
    2000010226707423062

    Executive Standard
    GB 1094 Electrical Transformer
    IEC 60076 Electrical Transformer
    GB/T10228 Specification and Technical Requirements for Dry-type Power Transformers
    JB/T10008 6kV~500kV Power Transformer Sound Level
    GB/T7354 Partial Discharge Measurements


    Type Meaning
    S Three Phase
    C Solidification Forming (Epoxy Resin Cast)
    (Z) Load Voltage Regulation
    (B) Low-Voltage Foil Coil
    Characteristic Code
    Rated Capacity (kVA)
    Rated High Voltage (kV)


    ·Order instructions:

    1. The customer needs provide main parameters of the transformer (input and output voltage, capacity, loss, etc.)

    2. Other customer requirements
