Amorphous Metal Dry Type Transformer Scbh15- 20-0.4KV Amorphous Metal

Ask Lasest Price
Brand Name :	HENGFENGYOU
Model Number :	SCBH15
Supply Ability :	5000 pieces/year
Delivery Time :	15 DAYS
Payment Terms :	LC T/T
Price :	500-30000
Certification :	ISO IEC CB COC KEMA SNI SABS CCC

Add to Cart

Product Details
Company Profile

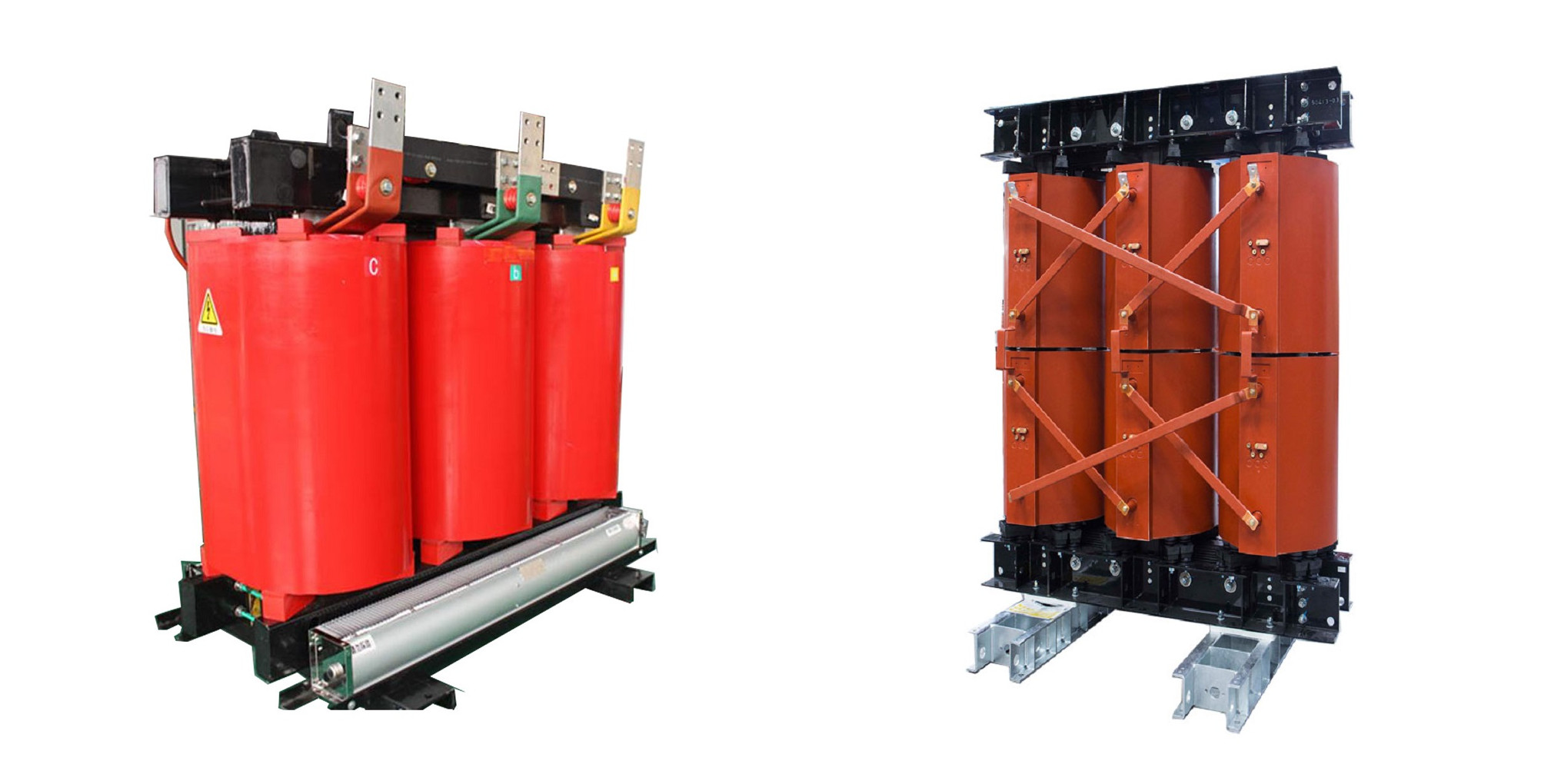

Amorphous Metal Dry Type Transformer Scbh15- 20-0.4KV Amorphous Metal

Scbh15 Amorphous Metal Dry Type Transformer

10-0.4KV model

20-0.4KV model

35KV model

1.Transformer normal service conditions

The height above the sea level is below 1000m;
Highest air temperature +40ºC;
Highest daily average air temperature+30ºC;
Highest annual average air temperature +20ºC;
Lowest outdoor air temperature -25ºC.
(defines in detail when transformer in special service conditions )

2. Dry type transformer Technical parameters(First-level energy efficiency grade)

Rated capacity (kVA)	Voltage combination			Connected group label	No-load loss (W)	Load loss (W)			No-load current (%)	Impedance voltage (%)
	High voltage (kV)	(%) tap range	Low Voltage (kV)			Load loss (W)
						130°C(B)	155°C(F)	180°C(H)
						100°C	120°C	145°C
50	20 22 24	±2X2.5 ±5	0.4	Dyn11 YynO	340	1160	1230	1310	2.0	6.0
100					540	1870	1990	2130	1.8
160					670	2330	2470	2640	1.5
200					730	2770	2940	3140	1.5
250					840	3220	3420	3660	1.3
315					970	3850	4080	4360	1.3
400					1150	4650	4840	5180	1.1
500					1350	5460	5790	6190	1.1
630					1530	6450	6840	7320	1.0
800					1750	7790	8260	8840	1.0
1000					2070	9220	9780	10400	0.85
1250					2380	10800	11500	12300	0.85
1600					2790	13000	13800	14800	0.85
2000					3240	15400	16300	17500	0.7
2500					3870	18200	19300	20700	0.7
2000					3240	16800	17800	19100	0.7	8.0
2500					3870	20000	21200	22700	0.7	8.0

Note: 1, To transformers whose rated capacity of 500kVA and below, load loss in the table above the diagonalis suitable for Dyn11 or Yzn11 connection group,
the load loss below the diagonal suitable for YynO connection group.
2, according to user needs, can provide transformer with high voltage tap range
3, according to user needs, can provide transformer with low-voltage of 0.69kV .
4, if the user needs, can also choose other loss values.
5, due to the continuous update of the product, weight &size in the table may changes.Most correct Dimension chart will be provied when making order.
