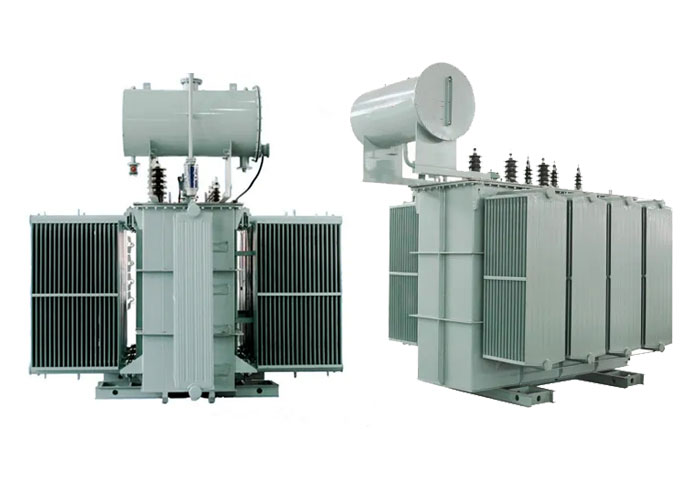

35 KV oil immersed transformer

·Product introduction
Compared with S9 series, the no-load loss of S11 series products is reduced by 30% on average, and no-load current is 70-80% lower. The iron core is made of import high magnetic conductivity, low loss, cold-rolled high-quality silicon steel sheet, which reduces the no-load loss and saves energy significantly. It shows characteristics of high safety and reliability, advanced structure, small dimension, light weight, low noise, low temperature rise, anti-corrosion and reliable anti-leakage measures to prevent oil leakage.

·Service conditions
1. The maximum ambient air temperature shall not exceed 40℃, and the minimum shall not below - 25℃;
2. The altitude shall not exceed 1000m. If special customized transformers and low-voltage components are used, the altitude can reach 4000m;
3. The vertical inclination is no more than 5°, and no violent vibration and impact;
4. The air humidity is not more than 90% (+ 25℃);
5. No gas and conductive dust that will seriously affect the insulation of transformer, no explosion hazard and corrosion of electrical components;
6. Outdoor wind speed shall not exceed 35m /s.
7. If service conditions beyond the above, specially customized product is available.


·Structural features:
1. The low-voltage winding is made of full-section copper foil and by special low-voltage winding machine with f-grade insulation.
2. The winding end is sealed and casted with resin, and then shaped by curing to prevent moisture and fouling.
3. Temperature control device: the transformer is equipped with BWDK series signal thermometer, which is embedded in the upper part of the low-voltage coil. The temperature-measuring components can automatically detect and display the working temperature of the corresponding phase coil, and alarm and trip at over temperature .
4. Insulation grade: the insulation grade of transformer can be divided into grades.

Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.

Order instructions:
1. The customer needs provide main parameters of the transformer (input and output voltage, capacity, loss, etc.)
2. Other customer requirements
