    Chemical Industry Medium Voltage Panel Mv Switchgear Panel For Power Reception

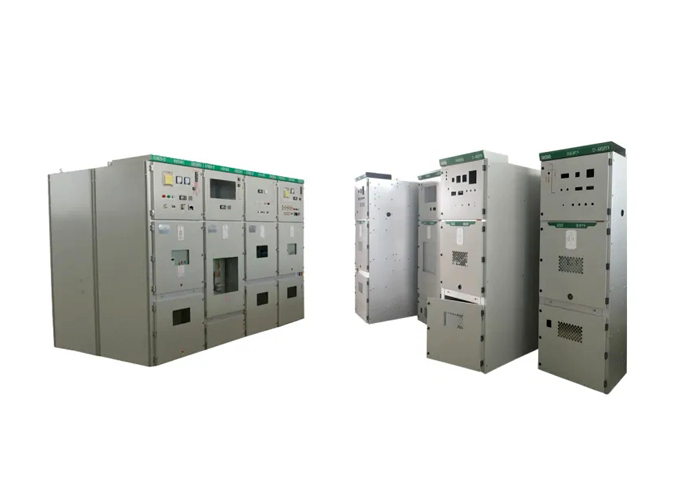

    High medium voltage electric switch gear control panel


    1: XGN2-12 is mainly used for power reception and distribution of 3-6KV-12KV 3 phase AC 50HZ indoor electric system

    Specially suitable for working conditions where frequent operations


    2: the production is strictly designed according to I standard,also suitable for frequency Shizuku and dirty working conditions.


    3: Successfully widely used by Three Georges project, national engineering designing institute, mining company, cement mill, stell mill,sugar factory,wood industry, chemical industry, city planning, and other place with big power motor and high electric consume place.


    4: KYN28-12 removable AC metal-clad switchgear (short for panel as below) is a new product. It will be a substitute for old fashioned metal-enclosed switchgear, such as KYN-12, JYN-12, GFC-12, etc. The panel applies to 3.6~12kV 3 phase AC 50Hz network for receiving and distributing power energy and also for control, monitor and protection. It accords with standard of IEC62271-200, IEC60694, GB3906.


    Working condition:


    relative humidty: daily average value < 95%, monthly average value <90%

    No explosion, serious pollution, chemica erosion, excessive vibration

    earthquick intensity no over 8 degree



    Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.


    Main technical parameters
    Main circuit rated voltage(V)..........................Ac 400 (600)
    Rated voltage of auxiliary circuit (V)..........................Ac 220/380 (400) dc 110/220
    Rated frequency (Hz)..........................50(60)
    Rated insulation voltage(V)..........................690(1000)
    Rated current(A)The level of bus≤6000
    Rated short-time bus withstand current (kA/1s)..........................50,80
    Rated peak withstand current of bus (kA/0.1s)..........................105,176

    Power frequency test voltage (V/1min)

    main circuit2500
    Auxiliary circuit1760

    bus

    Three-phase four-wire systemA,B,C,PEN
    Three-phase five-wire systemA,B,C,PE,N
    Protection grade..........................IP30



    4)Main technical parameter


    nonameunitdata
    1rated voltagekv3, 6,10
    2ratd currentA630,1000,1250,1600,2000,2500,3150
    3rated frequencyHZ50
    4rated short circuit drop out current(effective value)KA20.25; 31.5; 40
    5rated thermo stable current( peak value)KA20.25; 31.5; 40
    6rated dynamic current( peak value)KA40; 80; 100
    7rated power frequency withsand voltage(1min)KVinter-electrode and earth 42; inter -fractures 48
    8ratd thunder impulse withstand voltageKVinter-electrode and earth 75; inter -fractures 85
    9rated thermo stable timeKV4
    10degree of protectionIP2X
    11externam dimension(WXDXH)MM1100x1200x2650( can design according to demand)
