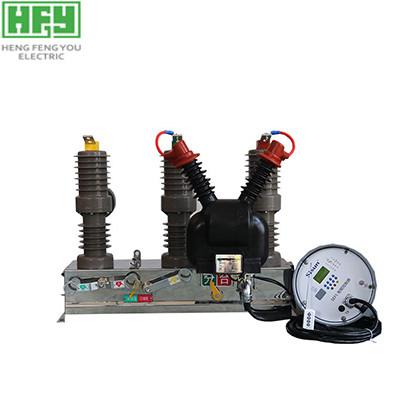

ZW27-12 outdoor AC high voltage vacuum circuit breaker
ZW27-12 outdoor AC high voltage vacuum circuit breaker is mainly
used to break and close load current, over-load current and
short-circuit current in outdoor 12kV three-phase alternating
current 50Hz power system, also suitable for occasion with frequent
operations. The product suitable for substations, industrial and
mining establishments, rural power network and occasions with
frequent operation to protect and control.
Manual,electric closing,opening mechanism
electric energy storage, electric closing & opening, manual energy
storage, manual closing & opening. Clear energy storage stop mark
outside, as well as closing & opening estate position.
Switch crust
- good causticity durability: adopt molding pressure foundry
aluminum alloy.
- stainless steel switch crust exploited up to now.
Manual, electric closing, opening mechanism
- electric energy storage, electric closing & opening, manual
energy storage, manual closing& opening. Clear energy storage stop
mark outside, as well as closing& opening estate position.
Spring mechanism
- improvement of the 20A mechanism. More miniature, credible
performance, mechanism life reaching twenty thousand times.
