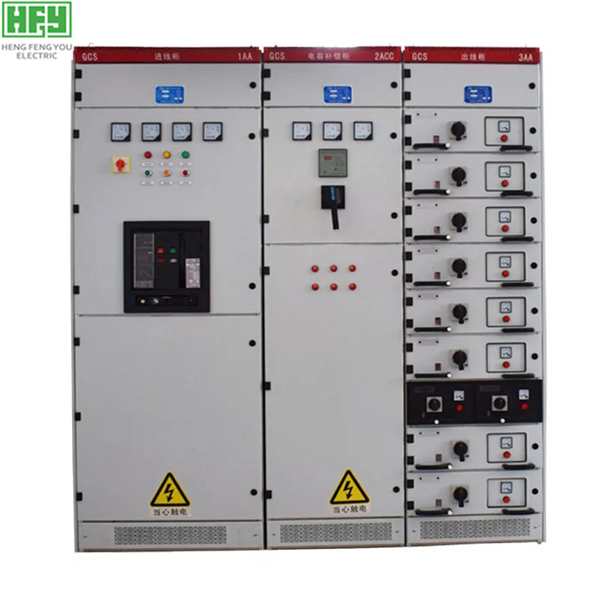

GCS model AC LV Withdrawable applies to power plant, substation industrial enterprise, as motive force in AC 50/60Hz, rated working voltage 380/415V, rated current 3150A and below distribution system. For transferring power energy, distributing and controlling of lightning and distribution. High breaking capacity, rated short time current will reach 50kA. Flexible circuit scheme, convenient combination, novel structure.

This product conforms to IEC60439 LV Switchgear and controlgear, GB7251 LV Switchgear and controlgear etc.

Executive standard:

GB7251 Low voltage complete set switchgear and control device

GB3906-2006 3.6kV~40.5kV AC metal enclosed switchgear and control device

Working Condition

1.Ambient temperature should not be more than -25℃ but not less than 40℃; 24-hour average temperature should not be more than +35℃.

2.The altitude of installation site should not exceed 2000m in the case of indoor installation;

3.The relative humidity of ambient air should not exceed 50% at +40℃; a higher relative humidity is allowed under conditions of low temperature (e.g. 90% at +20℃). The condensation may be generated under the influence of temperature variation, which should be taken into consideration.

4.The vertical inclination of equipment should not exceed 5°.

5.The equipment should be installed in the places without violent vibration and impulse and as well the places without corrosion to the electric components
