    Low Voltage Motor Control Panel/ Withdrawable Type Low Voltage Switchgear/ Power Distribution Switchboard

    Ask Lasest Price
    Brand Name : HENGFENGYOU
    Model Number : GCS
    Certification : ISO IEC CB COC KEMA SNI SABS CCC
    Payment Terms : LC T/T
    Supply Ability : 5000 piece/year
    Delivery Time : 30 days
    Price : 200-20000/piece
    • Product Details
    • Company Profile

    Low Voltage Motor Control Panel/ Withdrawable Type Low Voltage Switchgear/ Power Distribution Switchboard

    Low Voltage Motor Control Panel/ Withdrawable Type Low Voltage Switchgear/ Power Distribution Switchboard



    Product Description

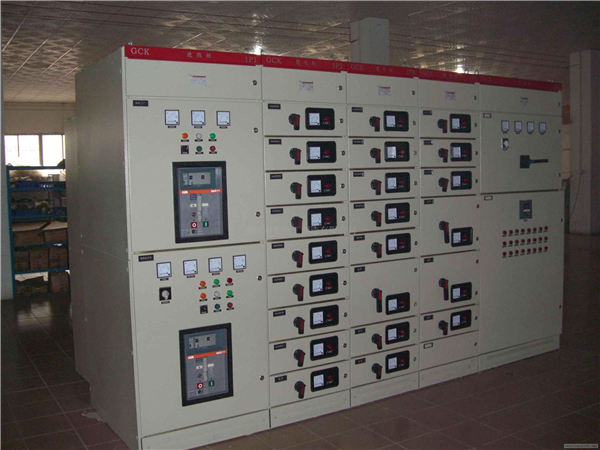

    Houndreds types product as like GCK low-voltage withdrawable switchgear (PC) by the power distribution center tank and motor control center (MCC) of two parts, is suitable for power plant and substation industrial and mining enterprises and other power users as ac 50 hz, maximum voltage to 660 v, the maximum working current - 3150 - a power distribution system, as power distribution, motor control and lighting power distribution equipment such as electric energy conversion distribution control.

    Houndreds types product as like GCK low-voltage withdrawable switchgear with high breaking capacity, good thermal stability, advanced structure, reasonable, electrical scheme of practical series, strong commonality, various solutions unit in any combination, a cabinet put oneself in another's position to accommodate the circuit is more, save area, beautiful appearance, high protection grade, safe and reliable, and convenient maintenance.

    This product conforms to IEC439 standard, also conforms to gb7251.1-2005 (national standard of low-voltage switchgear assembly) and zbk36001-89 "professional standard of low-voltage draw-out switchgear assembly".


    Engaged in manufacturing energy-saving and environmental-protecting products, Ai Power developed series of high qualified switchgears, which include P/V-12 series switchgears, KYN series switchgears, GGD, GCK, GCS, MNS switchgears, SEN Plus switchgears, MD190 and Safering gas insulated switchgears. All the products are manufactured with the advanced technologies and equipments from abroad. Our switchgears have passed the type test by the State High Voltage Apparatus Quality Supervision and Examination Center, and got the China Compulsory Certifications. All the products are universally used in distribution system of national grid, infrastructure projects, transportation construction and residential areas, etc.

    Structure Features & Specification:

    Metal-clad enclosed switchgear, with handcart
    Air insulation
    Separate earthing, 4 separate compartments: busbar compartment, handcart compartment, cable compartment, meters compartment.
    Modular structure, plug electric connection
    Perfect and reliable interlocks and pressure relief facilities.
    Intelligentized system, less maintenance.



    nonameunitdata
    1rated voltagekv3, 6,10
    2ratd currentA630,1000,1250,1600,2000,2500,3150
    3rated frequencyHZ50
    4rated short circuit drop out current(effective value)KA20.25; 31.5; 40
    5rated thermo stable current( peak value)KA20.25; 31.5; 40
    6rated dynamic current( peak value)KA40; 80; 100
    7rated power frequency withsand voltage(1min)KVinter-electrode and earth 42; inter -fractures 48
    8ratd thunder impulse withstand voltageKVinter-electrode and earth 75; inter -fractures 85
    9rated thermo stable timeKV4
    10degree of protectionIP2X
    11externam dimension(WXDXH)MM1100x1200x2650( can design according to demand)

    Working Environment

    1. Indoor altitude above sea level: Maximum installation altitude: 2000m

    2. Ambient air temperature: -5℃~+40℃ and the average temperature should not

    exceed +35℃ in 24h

    3. Relative humidity should not exceed 50% at max temperature +40℃. Higher

    relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of

    the temperature change, it is possible that moderate dews will produce casually.

    4. No fire, explosion danger, serious pollution, chemical corrosion and severe vibration

    5. Installation gradient not exceed 5°

    6. This product is suitable for the following temperature transportation storage: -25 ~+55 24h, in a short period of time (no more than 24hours) not more than+70℃.

    Order information

    Arrangement and layout
    Model, specification and quantity of main components.
    Incoming and outgoing wire method and cable specification, etc
    If bus connection is required between the devices, bus connection and height from the ground shall be provided
