Amorphous alloy transformer SCBH15 cast resin dry-type amorphous alloy transformer

Ask Lasest Price
Brand Name :	HENGFENGYOU
Model Number :	SCB10
Certification :	ISO IEC CB COC KEMA SNI SABS CCC
Payment Terms :	LC T/T
Supply Ability :	5000 pieces/year
Delivery Time :	15 DAYS
Price :	500-30000

Add to Cart

Product Details
Company Profile

Amorphous alloy transformer SCBH15 cast resin dry-type amorphous alloy transformer

Product introduction
SCBH15 series dry-type amorphous alloy transformer is a maintenance-free advanced energy-saving transformer, with features of moisture-proof, fire-proof, explosion-proof, small partial discharge and great heat dissipation.

Application
SC(B) Series DRY EPOXY RESIN DISTRIBUTION POWER TRANSFORMER is widely applied in hotels, high buildings, business centers, residence community, gymnasium, Petrochemical plant, airport, harbor, metro, mine, drillic.

Technical data

Rated capacity (kVA)	H.V. winding (kV)	tapping range of high voltage (%)	L.V. winding (kV)	Vector group	No-load Loss (kW)	load Loss (kW)	No-load Current (%)	short circuit impedance (%)
30	6 6.3 6.6 10 10.5 11	±5 ±2×2.5%	0.4	Dyn11	0.07	0.71	1.6	4
50					0.09	1.00	1.4
80					0.12	1.38	1.3
10					0.13	1.57	1.2
125					0.15	1.85	1.1
160					0.17	2.13	1.1
200					0.20	2.53	1.0
250					0.23	2.76	1.0
315					0.28	3.47	0.9	6
400					0.31	3.99	0.8
500					0.36	4.88	0.8
630					0.42	5.88	0.7
630					0.41	5.96	0.7
800					0.48	6.96	0.7
1000					0.55	8.13	0.6
1250					0.65	9.69	0.6
1600					0.76	11.73	0.6
2000					1.00	14.45	0.5
2500					1.20	17.17	0.5
1600					0.76	12.96	0.6	8
2000					1.00	15.96	0.5
2500					1.20	18.89	0.5

Structural features

1. Low energy consumption: The adoption of isotropic soft magnetic material generates low magnetization power, high electrical resistivity and low eddy current consumption. The no-load loss and current of the core made of amorphous alloy are very low, only 1 / 3 of that of silicon steel sheet.

2. Strong corrosion resistance: the amorphous alloy core is fully wrapped by resin and high temperature resistant silica glen which effectively prevent corrosion and falling off amorphous alloy fragments, and provide better protection for the core and coil.

3. Low noise. Improvement of the structure of iron core and coil and adoption of special noise -reduction materials greatly reducing the operation noise.

4. Strong short-circuit resistance. This product adopts three-phase five-column structure, and the iron core is protected by frame structure. Featured by low temperature-rise and strong heat dissipation, this product can work by 150% rated load under air cooling condition. Perfect temperature control protection system is applied to provide reliable guarantee for safe operation of transformer

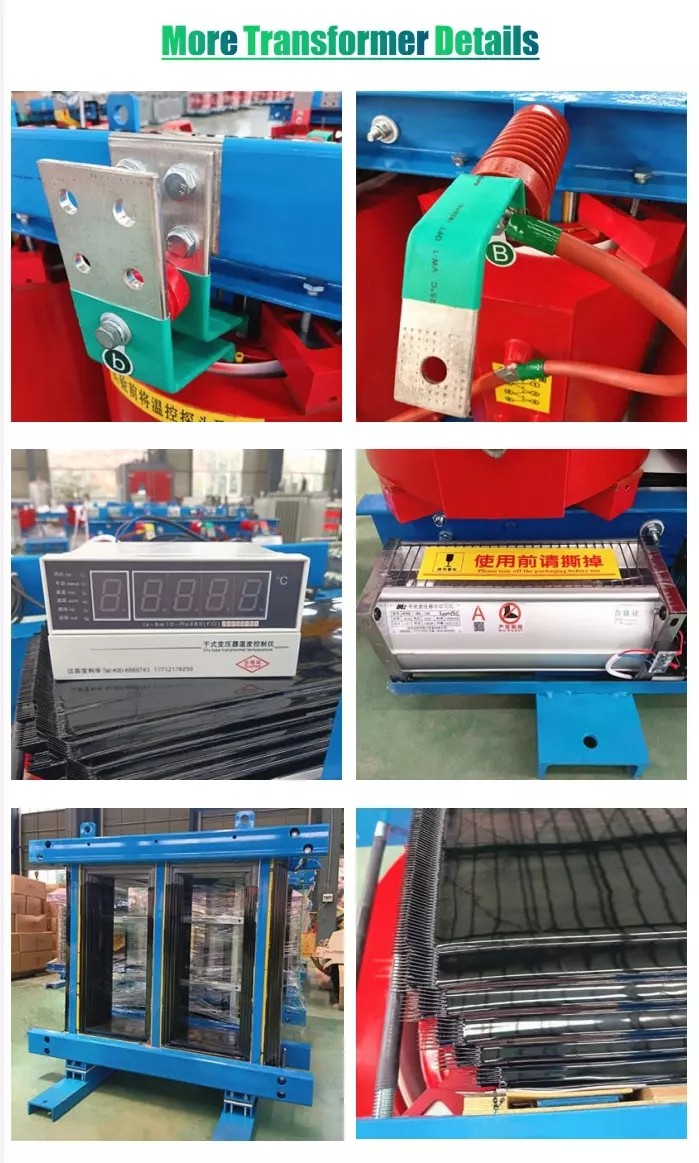

Product details

Amorphous alloy transformer SCBH15 cast resin dry-type amorphous alloy transformer

Points to note

1.working condition
* Device types: indoor type
* Normal environment conditions of use: the elevation not more than 1000 m
* Environmental highest temperature + 40℃, minimum-25 ℃
* The special environment conditions of use: elevation of more than 1000 m
* Environmental highest temperature + 40 ℃, minimum-45 ℃. (when you order details)
* Mounting ambicnt: no corrosive gas, no obvious dirt environment

2.applicable standard
* IEC60076 power transformer
* IEC723 dry power transformer
* GB6450-1986 dry power transformer
* GB/R1094-1996 power transformer
* GB4208-1993 outer shell protect grade(IP code)

Qualification Centre

All products of the company have passed the national type test like CCC, CQC , CTQC and other

national mandatory product certification, and has a perfect quality, occupational health and

environmental management system certification system. Our products have passed ISO9001, 2000

and other international quality system certification.
