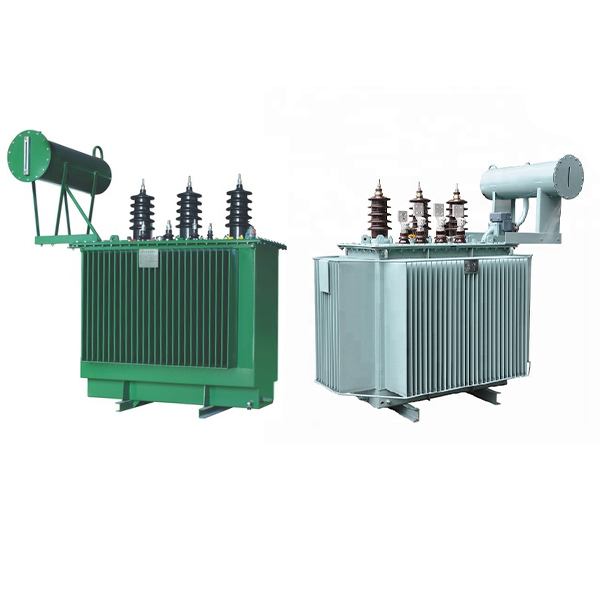

    3 phase High voltage transformer price 50-500kva step up transformer oil immersed power transformer

    Ask Lasest Price
    Brand Name : HENGFENGYOU
    Model Number : S11
    Certification : ISO IEC CB COC KEMA SNI SABS CCC
    Price : 200-200000/piece
    Payment Terms : LC T/T
    Supply Ability : 5000 pieces/year
    Delivery Time : 15 DAYS
    • Product Details
    • Company Profile

    3 phase High voltage transformer price 50-500kva step up transformer oil immersed power transformer

    3 phase High voltage transformer price 50-500kva step up transformer oil immersed power transformer


    ·Product introduction

    Ai Power offers three phases, oil immersed, and naturally cooled distribution and power transformers. Our products from 10kva to 20000kva with a maximum voltage 35kv are manufacture under the standard of IEC60076. The windings are made of high-grade electrolytic cooper and are concentrically positioned. Usually copper foil is used for the low voltage windings. Round shaped, enamel insulated wires is used for the high voltage windings.


    ·Service conditions

    The altitude shall not exceed 1000m

    Ambient temperature: - 10 ℃ ~ + 40 ℃

    Ceiling Monthly Average temperature: + 30 ℃

    Maximum annual average temperature: + 20 ℃

    Daily temperature difference: 25 ℃

    Seismic crack degree: 8 degrees

    Relative humidity: 95% (+ 25 ℃)


    · Structural features:

    1. The transformer core is made of imported high-quality cold-rolled silicon steel sheet, which greatly reduces no-load loss and no-load current. The core is tightly bound to ensure the compactness and reduce noise.

    2. The high and low voltage windings are made of oxygen-free copper. The low voltage winding of 500KVA and below is of double-layer cylinder structure, of 630kVA and above adopt double helix or four helix structure. High-voltage winding adopts multi-layer cylinder structure.

    3. Dyn11 is used in the transformer connection group to reduce the influence of harmonics on the power grid and improve the quality of power supply.

    4. The transformer is a fully sealed structure, with three coats of primer and one coat of finish paint applied on the inner and outer surfaces. The product is salt fog proof, moisture proof and fungus-proofing, beautiful, durable and reliable

    5. The measured noise value is lower than the standard and maintenance free under normal operation.


    Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.

    Main technical parameters
    Main circuit rated voltage(V)..........................Ac 400 (600)
    Rated voltage of auxiliary circuit (V)..........................Ac 220/380 (400) dc 110/220
    Rated frequency (Hz)..........................50(60)
    Rated insulation voltage(V)..........................690(1000)
    Rated current(A)The level of bus≤6000
    Rated short-time bus withstand current (kA/1s)..........................50,80
    Rated peak withstand current of bus (kA/0.1s)..........................105,176

    Power frequency test voltage (V/1min)

    main circuit2500
    Auxiliary circuit1760

    bus

    Three-phase four-wire systemA,B,C,PEN
    Three-phase five-wire systemA,B,C,PE,N
    Protection grade..........................IP30

    ·Order instructions:

    1. The customer needs provide main parameters of the transformer (input and output voltage, capacity, loss, etc.)

    2. Other customer requirements
