Three Phase High Voltage Vacuum Circuit Breaker
1, Product description
ZW20-12 model outdoor AC vacuum circuit breaker is used to make and
break load
current, overload current and short-circuit current in 12kV,
50/60Hz power system.
It's applicable for substations, industry and mining, urban and
rural electricity power
networks, especially applicable in occasions with frequent
operation and automatic
power distibution network. It accords with the standards of
IEC62271-100 &GB1984
AC high voltage circuit breaker, GB/T 11022 HV General technical
requirement of
switches and control apparatus.
with frequent operations.
2, Optional equipments
1. Current transformer, metering pole 3 pieces 200/5 or higher.
2. Outer voltage transformer 2 pierces (for control power supply
and metering).
3. Motor spring mechanism AC/DC220/1 10/48/24V.
4. Reclosing controller and series FTU and RTU.
3, Specification list:
| Item | Unit | Numeric | |
| NominalVoltage | KV | 12 | |
| RatedFrequency | HZ | 50 | |
| RatedCurrent | A | 630 | |
| RatedShort-circuitBreakingCurrent | KA | 20 |
| DynamicStabilityratedcurrent | KA | 50 | |
| RMS/Ratedthermalstabilization | KAIS | 20/4 |
| Mechanismlife | Times | 10000 | |
| Ratedshort-circuitclosingbreakingNumber | Times | 30 |
| Ratedoperatingsequence | | 0-0.35-C0-1805-CO 10000 | |
| Ratedbreakingcurrentnumber | Tmes |
| Ratedshort-circuitcloseopencurrent | KA | 50 | | |
| Ratedinsulationlevel | KV | | ShortPower- frequencywithstand | Thunder shocking |
| PE | 42/34 | 75 |
| PP | 42/34 | 75 |
| Fracture | 48/34 | 35 |
| Assist | | |
| SF6ratedpressure(20spendpressure) | MPa | 0.01 | | |
| Ratedshort-circuitclosingbreakingNumber | | 30 | | |
| Ratedshort-circuitcut-offcurrent'sDCcomponent | %dc | 513 | |

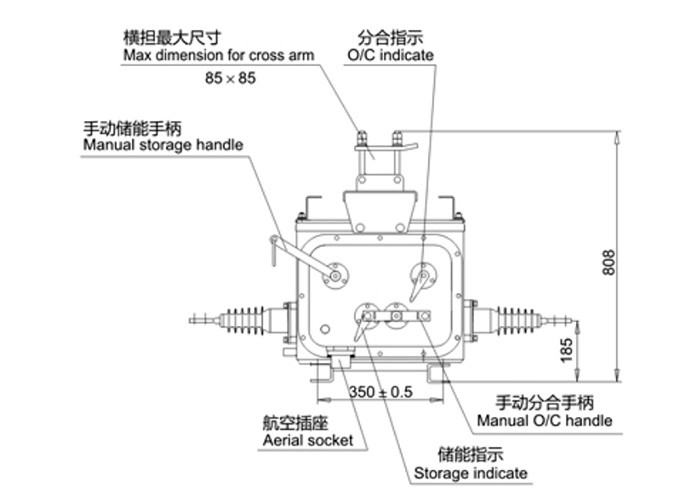

4, Structure:
5, Product characteristics
1. Ideal apparatus in urban and rural electricity network reform :
Remote function:remote
control, remote metering, remote communication and remote
adjustment.
2. Flexible operating: Both power storage and CO operation are
motor and manual operated,
remote and local operation are both available.
3. Excellent breaking capability: Break short-circuit current 25kA
up to 30 times.
4. Small operation power and high dependability: The small
motor-driving spring operation
mechanism with new design is of lowest operation power (about 30W).
5. Multiple nstallations: Pole mounted and pad mounted.
6. Reliable sealing: The mature sealing technology assures reliable
sealing performance

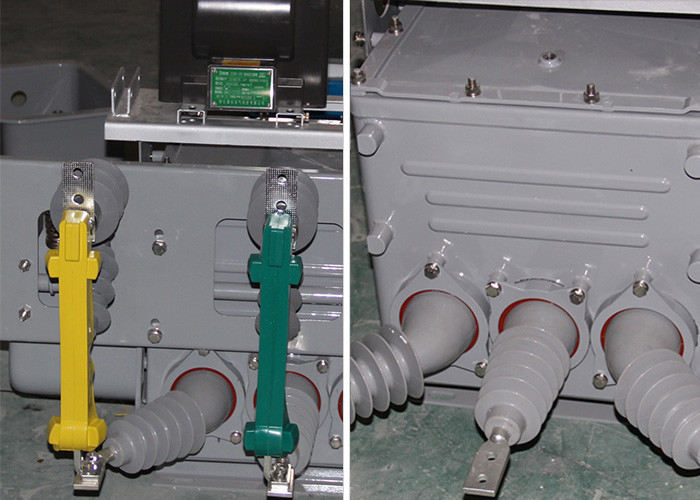

7. Particular incoming and outgoing method: Silicon rubber bushing
to make enough insulate distance.
8. Safe operation: Anti-explosive device mounted on the top of box
prevents heated gas and maters from
spattering out when inner fault occurs.
