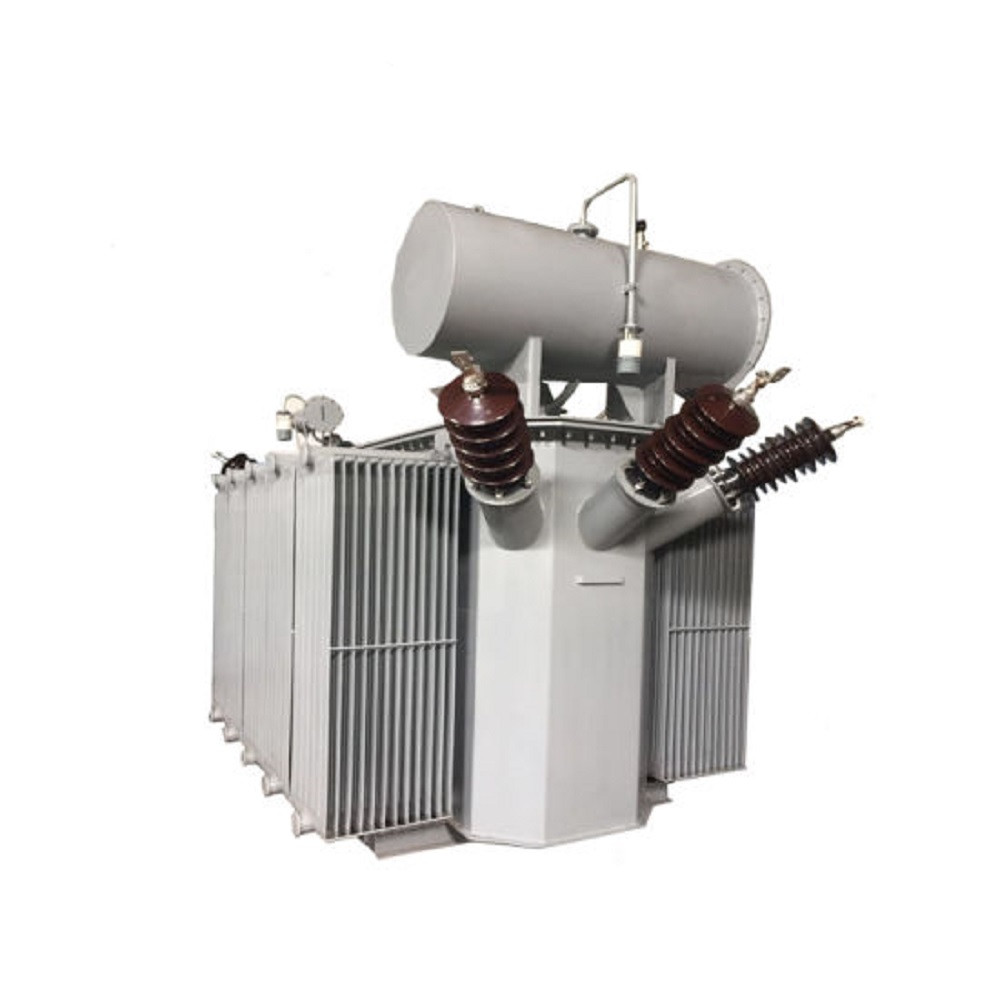

    3 Phase 33kv High Voltage Oil-Immersed Type Power Distribution Transformer

    Ask Lasest Price
    Brand Name : HENGFENGYOU
    Model Number : 10kv
    Certification : ISO IEC CB COC KEMA SNI SABS CCC
    Payment Terms : T/T
    Supply Ability : 2000 Piece/Pieces per Month
    Delivery Time : 15 DAYS
    Price : 200-200000/piece
    • Product Details
    • Company Profile

    3 Phase 33kv High Voltage Oil-Immersed Type Power Distribution Transformer

    3 Phase 33kv High Voltage Oil-Immersed Type Power Distribution Transformer


    Advantage of materials

    1. because we use oxygen-free copper lines of lower resistivity, which will become smoother and burr-free after series of additional surface treatment, so the load loss of our transformer is lower and the electric performance is better.
    2. We use high-quality silicon-steel plates which are of lower unit loss, and no-load of the transformers is lower;
    3. We use high-quality wooden laminating insulation pieces, which won't split or move even under the influence of short circuit;
    4. We use thoroughly filtrated transformer oil containing less water ,gas and impurities, which makes our transformer work better;
    5. We use high-quality rubber sealing material, which can prevent the transformers form aging or leakage;
    6. All materials has passed the quality testing, and all the raw material factories has pass through the national standard ISO9000 inspection.
    KVAVoltageVECTOR GROUPLOSSESNo-Load CurrentWeight(kg)Overall dimension (mm)
    H.V(KV)L.V(KV)No-Load LossLoad LossOil WeightTotal WeightLWH
    20








    6
    6.3
    10
    10.5
    11
    13.2










    380
    400
    415
    433











    YynO Dyn11 Yzn11
    905302.355230720440855
    301006002.175305750500990
    501308702.0804058004801030
    6315010401.9954558306151060
    8018012501.91055108405801115
    10020015001.81205308906451145
    12524018001.71306709106001185
    16028022001.61408109107001280
    20034026001.516089010007601240
    25040030501.4175102012857301290
    31548036501.4185117012807401385
    40057043001.3215141013107501432
    50068051001.2260164513657651510
    63081062001.1310207014858151615
    80098075001.0370244516409301590
    10001150103001.04252800186011201630
    12501360120000.94803320186011201830
    16001640145000.85504175197511751900

    3 Phase 33kv High Voltage Oil-Immersed Type Power Distribution Transformer


    Typical test values and performances are performed in the painting lab on steel plates during the whole painting process in order to confirm the following:
    • Minimum paint thickness film (ISO 2808): 70µm
    • Specular gloss factor at 60 Deg (ISO 2813): 90 +/- 5%
    • Falling weight test (ISO 6272): 1Kg/050cm
    • Erichsen cupping test (ISO 1520): 08mm
    • Scratch test (Adhesion ISO 2409): 0
    • Bend Test (cylindrical mandrel ISO 1519): 3,0mm
    • Salt spray (Fog) test (ISO 7253): Over 1000 Hours

    3 Phase 33kv High Voltage Oil-Immersed Type Power Distribution Transformer
