Three-Phase Oil-Immersed Medium Voltage & High Voltage Power Supply Distribution Transformer

Features:
High reliability, advanced level of performance, economic indicators and reasonable;
Using phase-shaped core of three joints, curing paint brushing the surface to reduce wear and tear and noise;
Winding structure of a new oil road design is reasonable, with the new insulation to improve the mechanical
strength and the ability to engage in short-circuit;
Tank forms, beautiful, generous.

Advantage of structure

1.we employ sprial coil with longitudinal oil path to make a better interior cooling effect;

2.we improve the effective support of the coil's terminal surface to strengthen the anti-short circuit current capability;
3.we employ new hoisting structure and body-positioning frames to guarantee that the long distance transport and movement will be more reliable;
4.cancelled the oil tank, the wave wings of tank instead of the tubing as a cooling device, corrugated tank is made of high quality cold press sheet on dedicated machine and enhance the reliability of running.

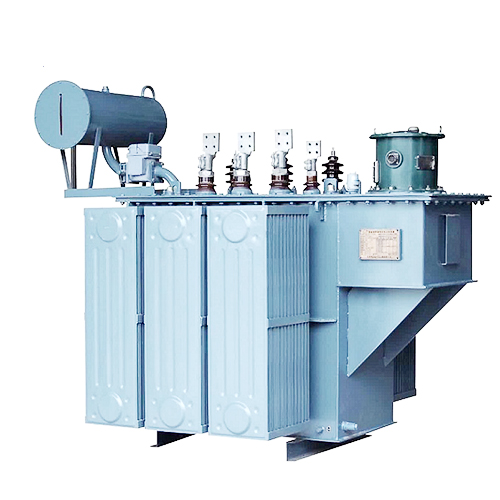

2.Product pictures

3, Specification of oil immersed transformer

4, Structural Features

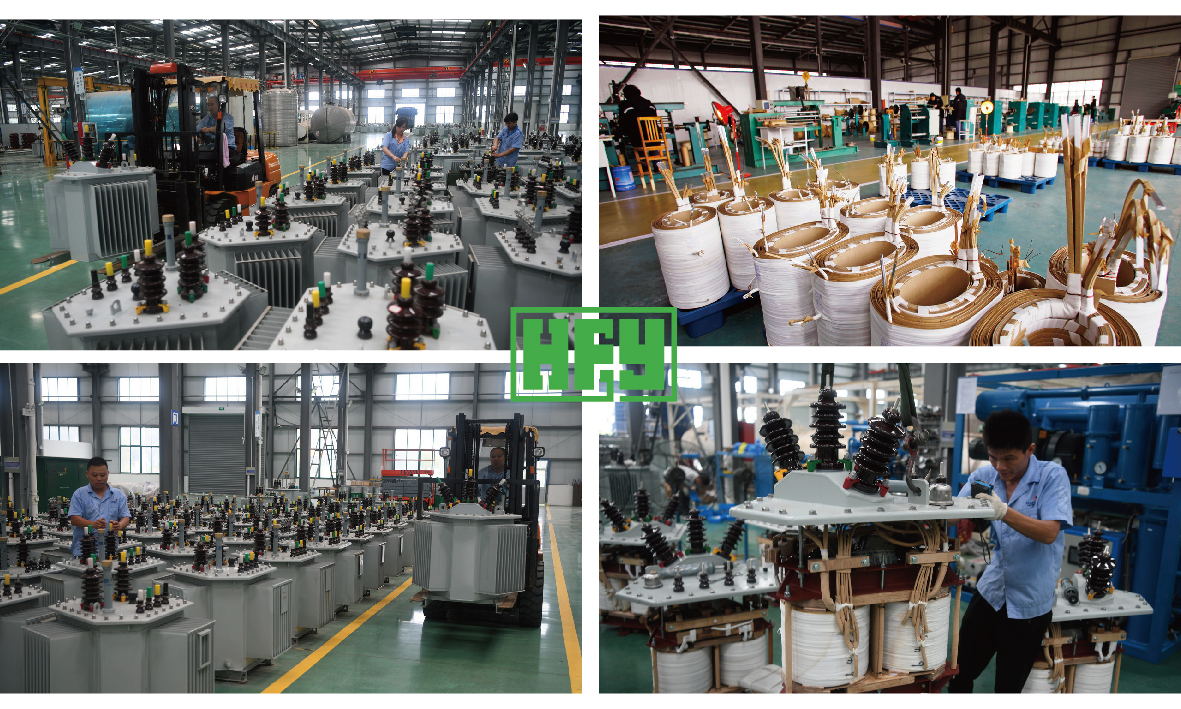

5, Workshop photos

6. Our team
