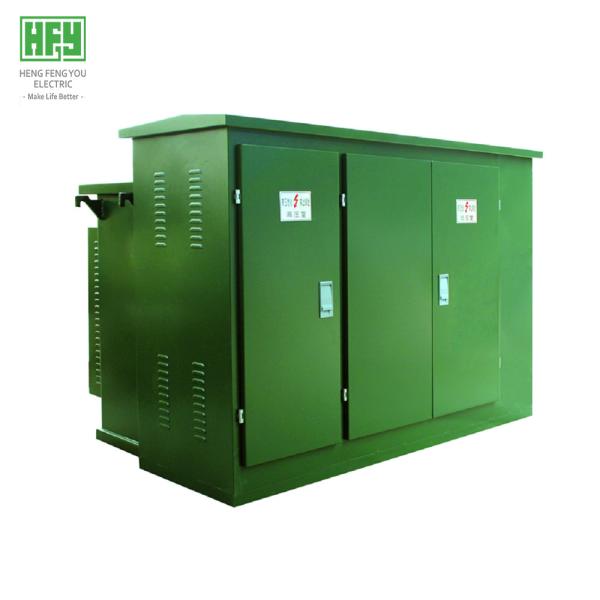

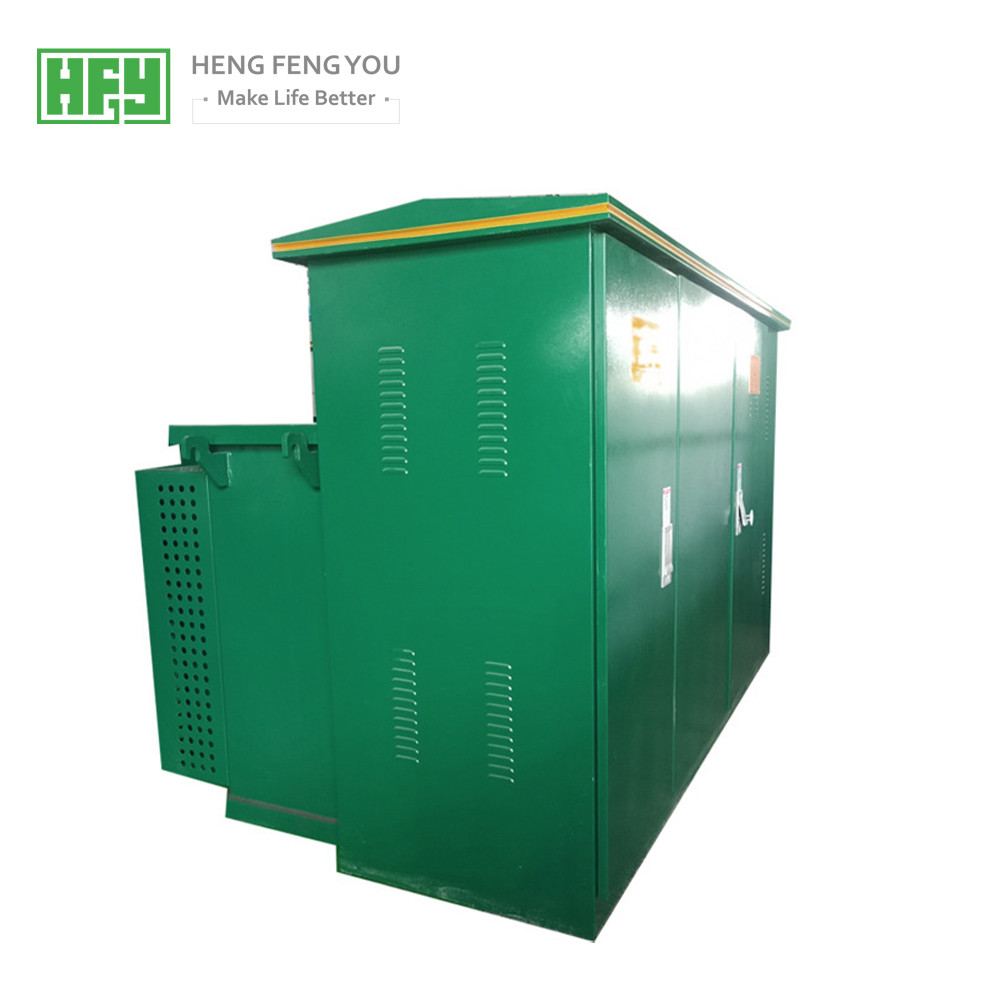

ZGS Series HV/LV Prefabricated (American type)Substation
Applications
The combined American box change is a transformer body, high
voltage load switch, fuse and other components.
It is placed in the transformer oil tank. Because it is immersed in
oil, the volume of the components is greatly reduced, the structure
is more compact, and the installation is convenient and flexible.
Fully insulated, fully sealed structure, safe and reliable, easy to
operate, maintenance free. Widely used in residential quarters,
high-tech centers, factories and mines, airports, stations,
schools.
Product description
The combination transformer is characterized by reliable power
supply, reasonable structure, quick installation, flexible and easy
operation, small volume, low construction cost, etc. it is suitable
for outdoor and indoor use, and is widely used in industrial parks,
residential quarters, business center and high risers.
Feature
Small volume, compact structure, reliable power supply and easy for
installation; it can realize single power supply, double power
supply, or ring net supply, with double-fuse protection, low
running cost.
The casing surface is treated by electrostatic painting and has
good wearing resistance. It is applicable to both ring network and
single/double power supply, is convenient for shifting, and can
enhance the reliability of power supply.
The transformers adopts environment-friendly S11 series spiral
core, non-excited voltage regulation, full-enclosed type, featuring
energy saving and low noise. The amorphous alloy transformer is
also available if required by clients.
HV load switches and protective fuse are placed in oil filled iron
tank, and the tank is of full-enclosed structure.
The LV room is provided with watt-hour meters, voltmeter, and
breakers of four outgoing lines, reactive power compensation can
also be provided if necessary.
It uses S11 series spiral core transformer amplifier, its idle loss
is 30%-40% lower than S9, and noise 7-10Db lower than S9.
Scope of application:
1.Urban public power distribution system,in the residential
area,when downtown street load increases,and need to increase the
transformer capacity.
2.Temporary power supply of construction site:existing
buildings,the need to transformer or increase the use of electrical
equipment,field operations and outdoor workplace power supply,such
as oil,mining,port terminals,stations and so on.
| Technical parameters |
| Rated voltage | 10/0.4kv(HV/LV) |
| Maximum working voltage | 12(HV) |
| Rated frequency | 50Hz |
| Rated capacity | 50-1600kVA |
| Withstand voltage(1 min working) | 35kV |
| Lightning impulse voltage | 75kV |
| Cooling method | oil immersion self-cooling |
| High voltage | 50kA |
| backup fuse switching on current |
| on-off current of the plug fuse | 2.5 |
| environment temperature | -35℃ to 40℃ |
| Coil temperature | 62 ℃ |
| No load voltage | ±5% ±2x2.5% |
| Noise level | 50db |
| Protection level | IP43 |
