    factory supply united power distribution Substation Box,European style economic model

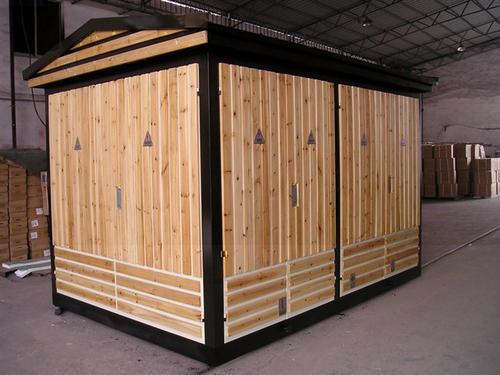

    Prefabricated Electrical Substation Box 4000A Rated Current For Power Distribution




    Features

    Overview
    Hengfengyou offers a wide variety of unit substation designs to meet customer requirements. A unit substation consists of one transformerelectrically connected to and coordinated in design with one or more switchgear or switchboard assemblies. A secondary unit substation is defined as a unit substation whose outgoing section is rated below 1000 volts.

    A Typical Secondary Unit Substation Consists Of Three Sections:
    Primary: an incoming section that accepts incoming high voltage (2400 to 13,800 volts) line
    Transformer: section that transforms incoming voltage down to utilization Voltage (600 volts or less
    Secondary: an outgoing section that distributes power to outgoing feeders and provides protection for these Feeders (600 volts and less)
    Standard Secondary Unit Substations Consist Of
    Medium Voltage Primary
    Transformer
    Low Voltage Secondary

    Hengfengyou also offers low voltage unit substations with
    Low Voltage Primary
    Transformer
    Low Voltage Secondary

    The primary reason for using a secondary unit substation is to bring power as close as possible to the center of the loads. Another reason is that it provides a system design concept incorporating a wide variety of components that permits tailoring equipment to the needs of the application.

    A secondary unit substation provides:
    Reduced power losses
    Better voltage regulation
    Improved service continuity
    Increased functional flexibility
    Lower installation cost
    Efficient space utilization
    Every component and assembly of secondary unit substations are designed and engineered as an integral part of a complete system.

    UNIT SUBSTATION LIGHTING PANEL
    Lighting control system are widely use on both indoor and outdoor lighting of commercial, industrial and residential spaces lighting control system serve to provide the right amount of light where and when it is needed lighting control systems are employed to maximize the energy saving form the lighting system. This may include digital timers and photocell that are hardwired to control fixed group of lights independently.

    Advantages
    Reduced electrical losses as USS can be installed near load centres.
    Total economy in cost.
    Higher degree of safety and operational reliability is achieved by HT and LT switchgears and protective relays to avoid overloading.
    Reduction in logistic cost as USS is delivered as a single unit.
    Low civil / foundation cost.

    Parameters

    Rated
    power
    (KVA)
    High
    Voltage
    (KV)
    H.VTap
    range
    Low
    Voltage
    (kV)
    Connection
    Symbol
    Short-Circuit
    Impedance
    (%)
    No-load
    Loss
    (W)
    On-Load
    LoSS
    (W)
    No-load
    Current
    (%6)
    Insulation
    Class
    SC(B)
    9
    SC(B)
    10
    SC
    (B)
    SC
    (B)
    10
    306
    6.3
    10
    10.5
    11
    +5%
    OR
    +2x2.5%
    0.4Yyn0
    Dyn11
    42201907507102.3F
    50310270106010002.2
    80420370146013801.7
    100450400167015701.7
    125530470196018501.5
    160610540|225021301.5
    200700620268025301.3
    250810720292027601.3
    315990880367034701.1
    4001100980422039901.1
    50013101160|5170|48801.1
    63015101340622058800.9
    630614601300|631059600.9
    80017101520|736069600.9
    100019901770861081300.9
    1250235020901026096900.9
    16002760245012400117300.9
    20003400305015300144500.7
    25004000360018180171700.7






    factory supply united power distribution Substation Box,European style economic model

    Product composition

    NITIZED SUB STATION CONFIGURATION COMPONENTS
    HV Compartment
    Extendible & Non Extensible MV Switchgear – Ring Main Unit (RMU)
    Vacuum / SF6 Circuit Breaker, RMU & HV Fuse.
    RMU & Load Break Switch.
    Protection & Metering Devices.
    Current & Potential Transformer for Metering / Protection.
    Transformer Compartment
    Oil Immersed Transformer /
    Dry Type Transformer (VPI)
    LV Compartment
    LV Distribution Board
    LT Control Panel with Incomer ACB & Outgoing MCCB
    APFC Panel
    LV Switch fuse unit
    Instrumentation and Metering
    Illumination
    Internal Lightning & Door Limit Switches, Tailor made enclosures mounted on the transformer under base to provide single lift complete
    installation with theft proof design.
    Applications
    USS (Unitized Sub Stations) / Package Sub Station are ideally suited for new residential and commercial complexes as it can be placed on Ground, partially or totally below / above ground level. Mainly used by Power Utilities, Multiplexes, Hotels, Hospitals, Shopping Malls, Software Parks, Residential Complex, Airport etc.

    factory supply united power distribution Substation Box,European style economic model

    Service Centre

    The shell of the box is made of aluminum-coated zinc steel plate and container manufacturing
    technology, and the design is beautiful. On the premise of ensuring the reliability of power supply,
    the shell color of the box-type substation is selected, so that it is easy to be in harmony with the
    surrounding environment Especially suitable for urban construction. Such as: Urban residential
    areas, stations, ports, airports, parks, green belt and other densely populated areas, it can be
    used as a fixed substation, can also be used as a mobile substation, with decorative and
    beautifying the environment.
