Prefabricated Electrical Substation Box 4000A Rated Current For Power Distribution
Overview

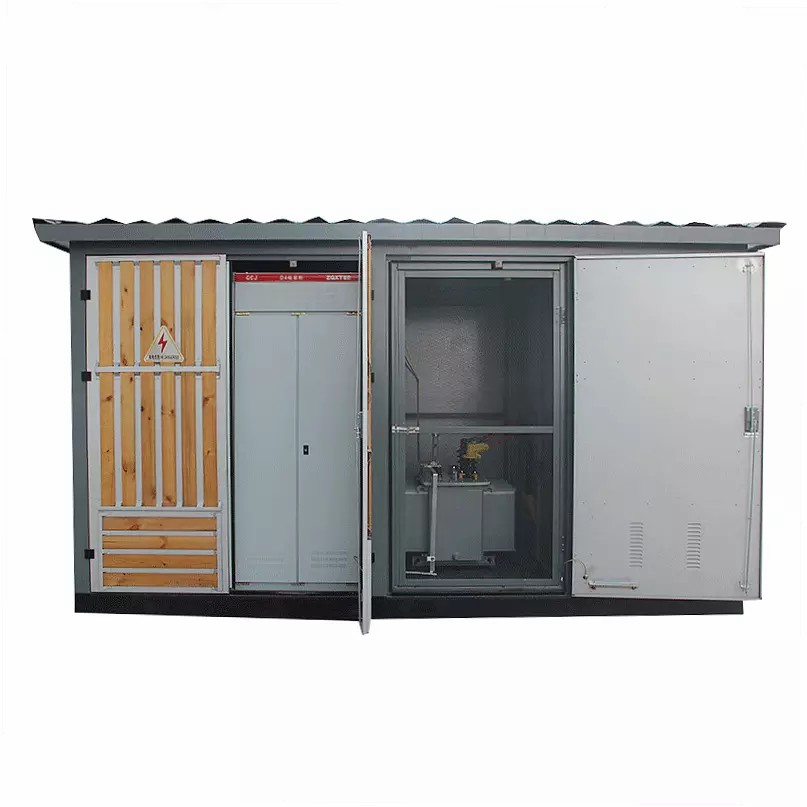

Box-type substation, also known as pre-installed substation. It is
a combination of high-voltage switch gear, distribution transformer
and low-voltage power distribution device.
It is an indoor and outdoor compact power distribution equipment
prefabricated in the factory,which is integrated according to a
certain wiring scheme. It combines the functions of transformer
step-down and low-voltage power distribution organically.
This power substation package is installed in a steel structure box
that is moisture-proof, rust-proof, dust-proof, rodent-proof,
fire-proof, anti-theft, heat-insulated, fully enclosed and
movable.It is especially suitable for urban network construction
and renovation.
It is a new type substation to replace the civil construction
substation. The box-type substation is suitable for mines,
factories, oil and gas fields and wind power stations. It replaces
the original civil power distribution room and substation and
becomes a new type of transformer distribution equipment.
Box-type substation is also suitable for residential quarters,
urban public, bustling downtown, construction power supply,
etc.Users can choose box-type substation according to different
usage conditions and load levels.
Tests
Below are the tests conducted by Varelen before delivery. Other
tests required by clients can also be done accordingly.
Insulation resistance
Resistance of all windings
Check voltage ratio and vector group
No-load test at rated frequency and rated voltage
Impedance test
Withstand voltage test
Induced over-voltage withstand test
Partial discharge measurement
Product Features
1. Intelligient control, integrated with enclosure, compact
structure and high environmental adaptability for outdoor
applications.
2. The three-limb iron core is made of oblique cut Grain-oriented,
seven-step silicon steel laminations insulated on both sides,
guaranteeing low losses and low noise. These values are even
improved by laser treatment. It is protected on the surface with a
flash-proof varnish in order to prevent the sheet from corrosion
and to reduce the noise.
3. Clamping frame: it is processed by CNC cutting, bending and then
one-time punch forming, the hole’s size is accurate and the
appearance looks delicate.
4. The winding coil is made of oxygen-free copper, class H for main
insulation materials and coil is insulated by NOMEX paper of DUPONT
brand, LV winding is isolated by copper foils. All these make the
heat-resistant is up to 220℃, with excellent overload capacity and
low loss, but high efficiency.
5. Varelen practices strictly exclusive casting system of F(155℃)
or H(180℃), and the epoxy resin is injected and casted in the
vacuum machine, so it’s highly insulated, dust-proof and
moisture-proof, which ensures stable and reliable performance.
Parameters
Rated
power
(KVA) | High
Voltage
(KV) | H.VTap
range | Low
Voltage
(kV) | Connection
Symbol | Short-Circuit
Impedance
(%) | No-load
Loss
(W) | On-Load
LoSS
(W) | No-load
Current
(%6) | Insulation
Class |
SC(B)
9 | SC(B)
10 | SC
(B) | SC
(B)
10 |
| 30 | 6
6.3
10
10.5
11 | +5%
OR
+2x2.5% | 0.4 | Yyn0
Dyn11 | 4 | 220 | 190 | 750 | 710 | 2.3 | F |
| 50 | 310 | 270 | 1060 | 1000 | 2.2 |
| 80 | 420 | 370 | 1460 | 1380 | 1.7 |
| 100 | 450 | 400 | 1670 | 1570 | 1.7 |
| 125 | 530 | 470 | 1960 | 1850 | 1.5 |
| 160 | 610 | 540| | 2250 | 2130 | 1.5 |
| 200 | 700 | 620 | 2680 | 2530 | 1.3 |
| 250 | 810 | 720 | 2920 | 2760 | 1.3 |
| 315 | 990 | 880 | 3670 | 3470 | 1.1 |
| 400 | 1100 | 980 | 4220 | 3990 | 1.1 |
| 500 | 1310 | 1160| | 5170| | 4880 | 1.1 |
| 630 | 1510 | 1340 | 6220 | 5880 | 0.9 |
| 630 | 6 | 1460 | 1300| | 6310 | 5960 | 0.9 |
| 800 | 1710 | 1520| | 7360 | 6960 | 0.9 |
| 1000 | 1990 | 1770 | 8610 | 8130 | 0.9 |
| 1250 | 2350 | 2090 | 10260 | 9690 | 0.9 |
| 1600 | 2760 | 2450 | 12400 | 11730 | 0.9 |
| 2000 | 3400 | 3050 | 15300 | 14450 | 0.7 |
| 2500 | 4000 | 3600 | 18180 | 17170 | 0.7 |
Product composition
NITIZED SUB STATION CONFIGURATION COMPONENTS
HV Compartment
Extendible & Non Extensible MV Switchgear – Ring Main Unit (RMU)
Vacuum / SF6 Circuit Breaker, RMU & HV Fuse.
RMU & Load Break Switch.
Protection & Metering Devices.
Current & Potential Transformer for Metering / Protection.
Transformer Compartment
Oil Immersed Transformer /
Dry Type Transformer (VPI)
LV Compartment
LV Distribution Board
LT Control Panel with Incomer ACB & Outgoing MCCB
APFC Panel
LV Switch fuse unit
Instrumentation and Metering
Illumination
Internal Lightning & Door Limit Switches, Tailor made enclosures
mounted on the transformer under base to provide single lift
complete
installation with theft proof design.
Applications
USS (Unitized Sub Stations) / Package Sub Station are ideally
suited for new residential and commercial complexes as it can be
placed on Ground, partially or totally below / above ground level.
Mainly used by Power Utilities, Multiplexes, Hotels, Hospitals,
Shopping Malls, Software Parks, Residential Complex, Airport etc.
Service Centre
The shell of the box is made of aluminum-coated zinc steel plate
and container manufacturing technology, and the design is beautiful. On the premise of ensuring
the reliability of power supply, the shell color of the box-type substation is selected, so that it
is easy to be in harmony with the surrounding environment Especially suitable for urban construction.
Such as: Urban residential areas, stations, ports, airports, parks, green belt and other
densely populated areas, it can be used as a fixed substation, can also be used as a mobile
substation, with decorative and beautifying the environment.
