HengFengYouZW8-12/630-20 vcb three phase ac 50hz outdoor high voltage

vacuum circuit breaker

ZW8-12 series of high voltage outdoor switchgear is used in three-phase AC power network of AC 50Hz, rated voltage 12KV for breaking and closing the rural network, city network and load current ,overload current, short circuit current for small scale

power system. The overall structure of the product for the three-phase with whole box-type, and using the SMC insulation materials , , and it has reliable performance, high dielectric strength.

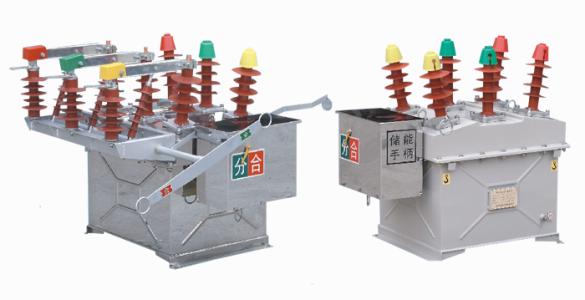

ZW8-12G is consist of ZW8-12 circuit breaker and isolation knife .and it is called conbination of circuit breaker.and also can be used segment switch,The series of ZW8-12,the mode of operation can be divided into manual and electric.

Technical parameters

Application and feature

It is equipped with CT23 type spring energy-stored operating mechanism. Energy-stored, opening and closing can be achieved by motor or by manual.

Applying ambient conditions

Ambient temperature: The max, temperature should be+40 degrees. The mix. temperature

The height above sea level should be no higher han 1000m.

Wind preesure should be on more than 7000Pa it isequivalent to wind speed of 34m/s

The air filthy should be win in III degree. Frequently violent vibration should be forbidden.
