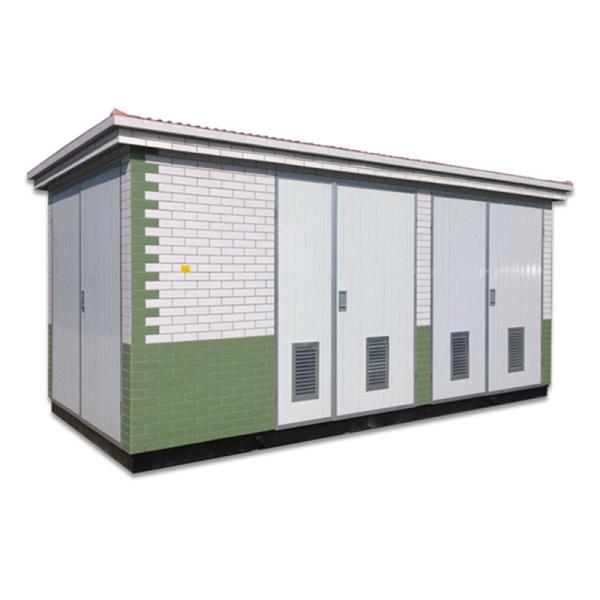

    HFY official manufacturer YB 10kV 30~1600KVA customizable prefabricated substation transformer outdoor prefabricated sub

    Ask Lasest Price
    Brand Name : HENGFENGYOU
    Model Number : YB
    Certification : ISO IEC CB COC KEMA SNI SABS CCC
    Payment Terms : LC T/T
    Supply Ability : 5000 pieces/year
    Delivery Time : 30 days
    Price : 2000-200000/piece
    • Product Details
    • Company Profile

    HFY official manufacturer YB 10kV 30~1600KVA customizable prefabricated substation transformer outdoor prefabricated sub

    Customized 10KV power distibution prefabricated substation


    10kv power distribution prefabricated subsation is a prefabricated complete set of power distribution device, which is composed of high-voltage power distribution device, transformer and low-voltage power distribution device according to a certain wiring scheme.


    Parameters


    No.ItemUnitHigh Voltage EquipmentTransformerLow Voltage Equipment
    1Rated Voltage UeKV7.2/126/0.4 10/0.40.4
    2Rated Capacity SeKVA

    200~2500

    50~800

    Max:2*1250
    3

    Rated Current

    Le

    A200~630144/3600100~3000
    4

    Rated Breaking Current

    A


    KA

    Load switch 400~630

    Depends on Fuse


    15-63

    5

    Rated Short Time Current(s)

    KA

    20*(2)


    12.5*(4)

    15*1


    30*1

    6Rated Peak CurrentKA31.5 50

    30

    63

    7

    Rated Making Current


    KA31.5 50
    8

    Power Frequency Withstand Voltage (1min)

    KV

    30/42


    Isolating distance 34/48

    Oil-immersed:35/5min


    Dry-type:28/5min

    <300v hour 2KV


    300 600 hour 2.5kv

    9

    Lightning Impulse

    KV

    60/75


    Isolating distance 75/85

    75


    75

    10

    Equipment Voice Level

    dB

    Oil-immersed:<55

    Dry-type:<65

    11

    Protection Level


    IP23D
    12

    Size


    Decided by electrical equipment and transformer

    Our Services

    1. Warranty period: 3 years. Maintenance for lifetime. 1 year free replacement for quality problems.

    2. Payment terms: 30% T/T advance, the balance be paid before shipment.

    3. FOB Ningbo/Shanghai port.

    ZBW series is a compact set of power distribution device combined in a cubicle, consisting of high-voltage switchgear, distribution transformer, low –voltage equipment, energy metering devices and reactive power compensation devices. It is applicable to rated voltage 3.6-12KV/0.4KV 50HZ three-phase AC system, as the acceptance and distribution of electrical energy. This series products are new developed and designed follow the standard of GB/T17467. It is widely used in industrial and mining enterprises, street lighting control, residential quarters, hospital, shopping mall, airports and other distribution systems.


    Product classification
    1, As per way of Installation:
    A, On ground(Product No. ZBW) 1, European type 2, American type
    B, Buried (Product No. YBD) 1,Fully-buried 2,Half-buried
    2, As per Material of substation enclosure: A,Metal material B, Non -metal material
    Which is optional by customers.
