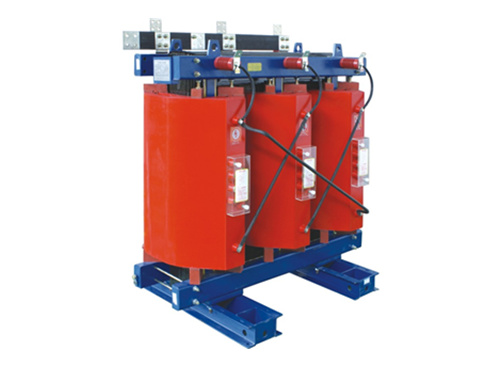

    Cast resin dry type transformer SCB10 200KVA 400KVA 630KVA 800KVA

    Ask Lasest Price
    Brand Name : HENGFENGYOU
    Model Number : SCB10
    Certification : ISO IEC CB COC KEMA SNI SABS CCC
    Payment Terms : LC T/T
    Supply Ability : 5000 pieces/year
    Delivery Time : 15 DAYS
    Price : 500-30000
    • Product Details
    • Company Profile

    Cast resin dry type transformer SCB10 200KVA 400KVA 630KVA 800KVA

    Dry type transformer

    SCB Dry Type power distribution transformer


    With advanced design and manufacture technology, rational structure and advanced formation of material, strict and perfect test technology, dry type transformer with thin insulation of casting resin has the following features:


    1.Hardly inflammable, hardly bursting, causing no pollution.
    2.Little partial discharge
    3.High moisture-proof level.
    4.High mechanical strength and good heat stability.
    5. High insulation level
    6. High capacity of overload because of high capacity of heat dissipation.
    7.Low loss, small volume and light weight
    8.High economic properties


    Benefits:
    1. Low noisy
    2. Low partial discharge
    3. High mechanical strength and strong short circuit resistance ability;
    4. Strong impact resistance


    Application
    SC(B) Series DRY EPOXY RESIN DISTRIBUTION POWER TRANSFORMER is widely applied in hotels, high buildings, business centers, residence community, gymnasium, Petrochemical plant, airport, harbor, metro, mine, drillic.


    Technical data


    Type

    Rated

    capacity

    (KVA)

    Connection

    groupgrade

    Voltagecombination(KV)

    Noloadloss

    (W)

    loadloss(W)

    DyYy

    No-load

    current(%)

    Short-circuit

    resistance(%)

    HighvoltageTappingrangeLowvoltage
    SC12-3030

    YynO

    .

    Dyn11

    10

    6.3

    6

    土5%

    +2x2.5%

    +x2.5%

    0.41507102.34.0
    SC12-505021510002.2
    SC12-808029513801.7
    SC12-10010032015701.7
    SC12-12512537518501.5
    SC(B)12-16016043021301.5
    SC(B)12-20020049525301.3
    SC(B)12-25025057527601.3
    SC(B)12-31531570534701.1
    SC(B)12--40040078539901.1
    SC(B)12-50050093048801.1
    SC(B)12-630630107058800.9
    SC(B)12-630630104059600.9
    SC(B)12-800800121569600.9
    SC(B)12-10001000141581300.9
    SC(B)12-12501250167096900.9
    SC(B)12-160016001960117300.9
    SC(B)12-200020002440144500.7
    SC(B)12-250025002880171700.7

    Product details

    Low loss:the product no-load loss is 20% lower than the Sc (B) 11 type product with an excellent energysaving effect, economic efficient operation and without maintenance.

    Low noise:the product noise level is 10-15 db lower than the existing professional standard
    JB/T10088- 2004Sound Level of 6- -220KV Transformer

    Low partial discharge:resin mixture adopts foreign leading-edge mixing method and film type
    vacuumdeaerator to evenly mix the mixture and remove the bubble in the bottom part of mixture.

    The product low partial discharge which can be controlled at 5PC. Both high voltage and low voltage coils can bepoured in vacuum pressure so as to enable a encapsulating of resin insulation and immersion amonglayers and inter-tums. The poured part has a compact solidity staicture with anti-flaming, anti explosionand environmental protection features. Glass fiber and other raw materials of winding coil have self- extinguishing property and will not producearc due to short circuit. Resin will not produce harmful gas under high temperature.

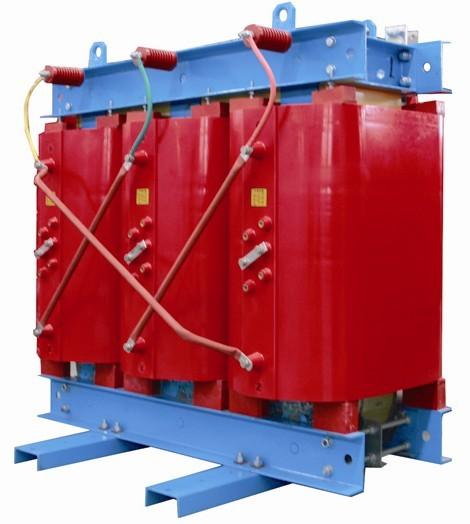

    Cast resin dry type transformer SCB10 200KVA 400KVA 630KVA 800KVA

    Points to note

    1.working condition

    * Device types: indoor type

    * Normal environment conditions of use: the elevation not more than 1000 m

    * Environmental highest temperature + 40℃, minimum-25 ℃

    * The special environment conditions of use: elevation of more than 1000 m

    * Environmental highest temperature + 40 ℃, minimum-45 ℃. (when you order details)

    * Mounting ambicnt: no corrosive gas, no obvious dirt environment


    2.applicable standard

    * IEC60076 power transformer

    * IEC723 dry power transformer

    * GB6450-1986 dry power transformer

    * GB/R1094-1996 power transformer

    * GB4208-1993 outer shell protect grade(IP code)


    Cast resin dry type transformer SCB10 200KVA 400KVA 630KVA 800KVA


    Qualification Centre

    All products of the company have passed the national type test like CCC, CQC , CTQC and other

    national mandatory product certification, and has a perfect quality, occupational health and

    environmental management system certification system. Our products have passed ISO9001, 2000

    and other international quality system certification.


    Cast resin dry type transformer SCB10 200KVA 400KVA 630KVA 800KVA


    SCOPE of application

    None of the dry-type transformers we see today are installed in a separate, tightly enclosed room, as in

    the oil-immersed type, but only in a relatively dry and clean room. In addition to this, it is also very convenient

    to transport or carry, no matter what kind of transport vehicles, trains, cars or other non-motor vehicles can be,

    but it is best to keep the car dry, clean and the product itself in good packaging. Practice has proved that really

    good products will always be more and more marketable. As dry-type transformers have very good fire-proof

    performance and are easy to install and maintain, they are also used more and more widely Especially in the

    modern commercial downtown, residential areas, hospitals, airports, stations, subways, theaters, schools,

    public places and other places with high requirements on fire protection.
