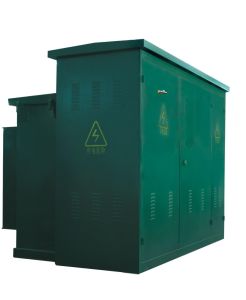

ZBW(YB)17-10 Series HV/LV Prefabricated (American type)Substation
Applications
The combined American box change is a transformer body, high
voltage load switch, fuse and other components.
It is placed in the transformer oil tank. Because it is immersed in
oil, the volume of the components is greatly reduced, the structure
is more compact, and the installation is convenient and flexible.
Fully insulated, fully sealed structure, safe and reliable, easy to
operate, maintenance free. Widely used in residential quarters,
high-tech centers, factories and mines, airports, stations,
schools.
The combined transformer is a new type of power distribution
equipment (also known as the American box change).
It is a new type of product specially designed for the distribution
network by introducing the most advanced technology and design
concept from abroad, combined with domestic conditions.
The combined American box type substation put the transformer body,
high-voltage load switch, fuse, and other components together in
the transformer oil tank. Because it is immersed in oil, the
component volume is greatly reduced, the structure is more compact,
and the installation is convenient and flexible.
Fully insulated, fully sealed structure, safe and reliable, easy to
operate, maintenance-free. Combined transformers are especially
suitable for load centers, residential centers, hospitals, schools,
airports, stations, etc. of urban power grids to reduce losses and
improve power quality.
Products Features
1. small size, reasonable and compact structure;
2. fully sealed fuel tank, fully insulated design, safe and
reliable operation;
3. strong overload capability, superior resistance to sudden short
circuit;
4. ring network and terminal power supply can be used,
5. easy to operate, reliable power supply;
6. energy saving, low loss, no higher than the new S9 loss value;
7. good impact performance;
8. cable connector number can operate 200A load current, long
mechanical life, and electrical life.
Normal conditions of use
Altitude: not exceed 1000m;
Ambient temperature:-35oC~+40oC
Relative humidity: daily average of not more than 95%, on average
less than 90%;
Installation place: no fire, explosion, chemical corrosive gas and
well-ventilated place, the ground angle of not more than 3°.
Scope of application:
1.Urban public power distribution system,in the residential
area,when downtown street load increases,and need to increase the
transformer capacity.
2.Temporary power supply of construction site:existing
buildings,the need to transformer or increase the use of electrical
equipment,field operations and outdoor workplace power supply,such
as oil,mining,port terminals,stations and so on.
| Technical parameters |
| Rated voltage | 10/0.4kv(HV/LV) |
| Maximum working voltage | 12(HV) |
| Rated frequency | 50Hz |
| Rated capacity | 50-1600kVA |
| Withstand voltage(1 min working) | 35kV |
| Lightning impulse voltage | 75kV |
| Cooling method | oil immersion self-cooling |
| High voltage | 50kA |
| backup fuse switching on current |
| on-off current of the plug fuse | 2.5 |
| environment temperature | -35℃ to 40℃ |
| Coil temperature | 62 ℃ |
| No load voltage | ±5% ±2x2.5% |
| Noise level | 50db |
| Protection level | IP43 |
