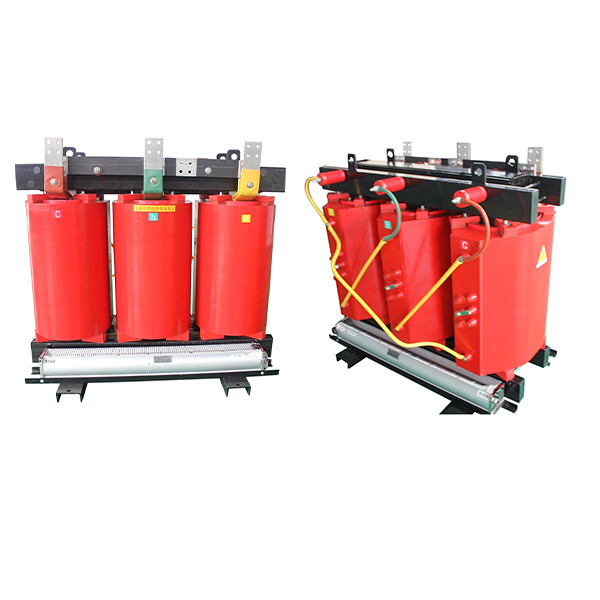

    Scbh15 Amorphous Metal Dry Type Transformer - China Dry Type Transformer

    Ask Lasest Price
    Brand Name : HENGFENGYOU
    Model Number : SCB series
    Certification : ISO IEC CB COC KEMA SNI SABS CCC
    Price : 200-200000/piece
    Payment Terms : LC T/T
    Supply Ability : 5000 pieces/year
    Delivery Time : 15 DAYS
    • Product Details
    • Company Profile

    Scbh15 Amorphous Metal Dry Type Transformer - China Dry Type Transformer

    Scbh15 Amorphous Metal Dry Type Transformer - China Dry Type Transformer


    1.Product Description

    1. Technical standards: IEC 60076-1-5, IEC 61378-1:1997, JB/T 8636-1997, GB 1094.11-2007, GB 1094.1-2013


    2. Rated capacity: 1-5000kVA


    3. Rated voltage: 690V, 660V, 440V, 380V, 220V, 110, etc


    4. Frequency: 50Hz or 60Hz


    5. Phase: three phase


    7. Coonnection: Y, yn0, Y,d11, D, yn11, etc.


    8. Cooling type: AN(Automatic cooling) or AF(Wind cooling)


    9. Insulation class: B, F, H


    10. Protection calss: customed


    11. Conditions of Use:
    * The altitude is less than 1000 meters

    * The ambient temperature is -10 to +40 degrees Celsius

    * The working humidity: not more than 95% when +26 degrees Celsius.

    Rated power (kVA)High voltage
    (kV)
    H.V.Tap
    (kVA)
    Low
    Voltage
    (kV)
    Vector group
    Short circuit impedance
    No-load loss
    (W)
    On-load loss
    (W)
    No-load
    Current
    (%)
    Insulation
    class
    Noise
    (dB)
    SC(B)9SC(B)10SC(B)9SC(B)10
    306
    6.3
    10
    10.5
    11
    ±5%

    +2×2.5%
    0.4Yyn0
    Dyn11
    422019017507102.3F40
    50310270106010002.240
    80420370146013801.740
    100450400167015701.740
    125530470196018501.541
    160610540225021301.342
    200700620268025301.342
    250810720292027601.144
    315990880367034701.146
    4001100980422039901.146
    50013101160517048800.947
    63015101340622058800.947
    630614601300631059600.947
    80017101520736069600.948
    100019901770861081300.948
    1250235020901026096900.949
    16002760245012400117300.950
    20003400305015300144500.752
    25004000360018180171700.755
