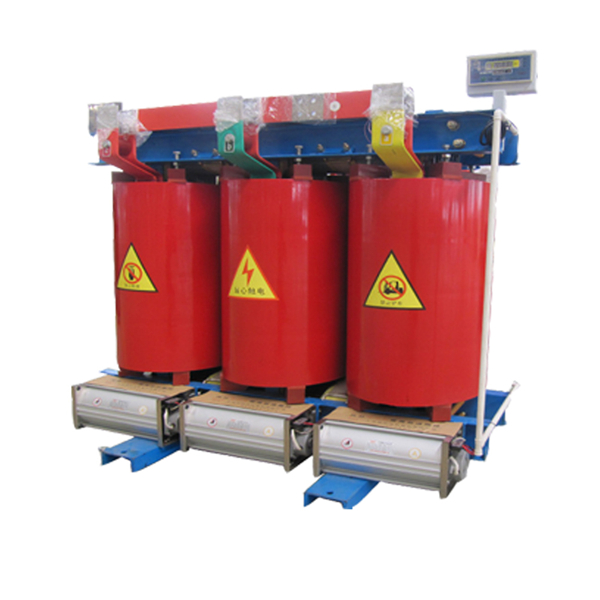

    Double Winding Dry Type 6kv 10kv/0.4kv 35kv Transformer Electrical Distribution For Power Plant

    Ask Lasest Price
    Brand Name : HENGFENGYOU
    Model Number : SCB10,11,12
    Certification : ISO IEC CB COC KEMA SNI SABS CCC
    Price : 200-200000/piece
    Payment Terms : LC T/T
    Supply Ability : 5000 pieces/year
    Delivery Time : 15 DAYS
    • Product Details
    • Company Profile

    Double Winding Dry Type 6kv 10kv/0.4kv 35kv Transformer Electrical Distribution For Power Plant

    Double Winding Dry Type 6kv 10kv/0.4kv 35kv Transformer Electrical Distribution For Power Plant


    Product description

    The dry type transformer has been widely used in places with high fireproofing requirements, such as power transmission and transformation system, high-rise building, commercial ceer, sport stadium, petrochemical enterprise, metro, station and airport. In China, the epoxy resin cast dry-type power transformer has the richest manufacturing experience and the best running performance.


    1. High mechanical strength and strong short circuit resistance ability;

    2. Good moisture resistance and run with 90% humidity;

    3. Advanced structure, small dimension, light weight and low partial discharge;

    4. High insulation level and equal electric field distribution;

    5. maintenance free;

    6. Run with 140% rated load under forced air cooling;

    7. Fireproof, explosion-proof, pollution-free and low-noise and able to be directly installed in the load center.



    Main technical data for 10kV SC(B)-30-2500 dry type transformer


    Rated power (kVA)High voltage
    (kV)
    H.V.Tap
    (kVA)
    Low
    Voltage
    (kV)
    Vector group
    Short circuit impedance
    No-load loss
    (W)
    On-load loss
    (W)
    No-load
    Current
    (%)
    Insulation
    class
    Noise
    (dB)
    SC(B)9SC(B)10SC(B)9SC(B)10
    306
    6.3
    10
    10.5
    11
    ±5%

    +2×2.5%
    0.4Yyn0
    Dyn11
    422019017507102.3F40
    50310270106010002.240
    80420370146013801.740
    100450400167015701.740
    125530470196018501.541
    160610540225021301.342
    200700620268025301.342
    250810720292027601.144
    315990880367034701.146
    4001100980422039901.146
    50013101160517048800.947
    63015101340622058800.947
    630614601300631059600.947
    80017101520736069600.948
    100019901770861081300.948
    1250235020901026096900.949
    16002760245012400117300.950
    20003400305015300144500.752
    25004000360018180171700.755

    Main technical data for 35 kV SCB(B)-50~2500 dry type transformer


    Rated power (kVA)High voltage
    (kV)
    H.V.Tap
    (kVA)

    Low
    Voltage
    (kV)
    Vector group
    Short circuit impedance
    No-load loss
    (W)
    On-load loss
    (W)
    No-load
    Current
    (%)
    Insulation
    class
    Noise
    (dB)
    SC(B)9SC(B)10SC(B)9SC(B)10
    5035
    38.5
    ±5%

    +2×2.5%
    0.4Yyn0
    Dyn11
    6500450150014302.8F53
    100700630220020902.456
    160880790296028101.858
    200980880350033301.859
    2501100990400038001.660
    31513101180475045101.661
    40015301380570054201.462
    50018001620700066501.463
    63020701860810077001.263
    80024002160960091201.266
    10002700243011000104501.066
    12503150284013400127300.967
    16003600324016300154900.968
    20004250383019200182400.969
    25004950446023000218500.973

    Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.



    · Order instructions:

    1. The customer needs provide main parameters of the transformer (input and output voltage, capacity, loss, etc.)

    2. Other customer requirements



    · Our service:

    1. quick response in before sales period help you got order.
    2. excellent service in production time let you know each step we made.
    3. reliable quality solve you after sale headache.
    4. long period quality warranty ensure you can buy without hesitate.
